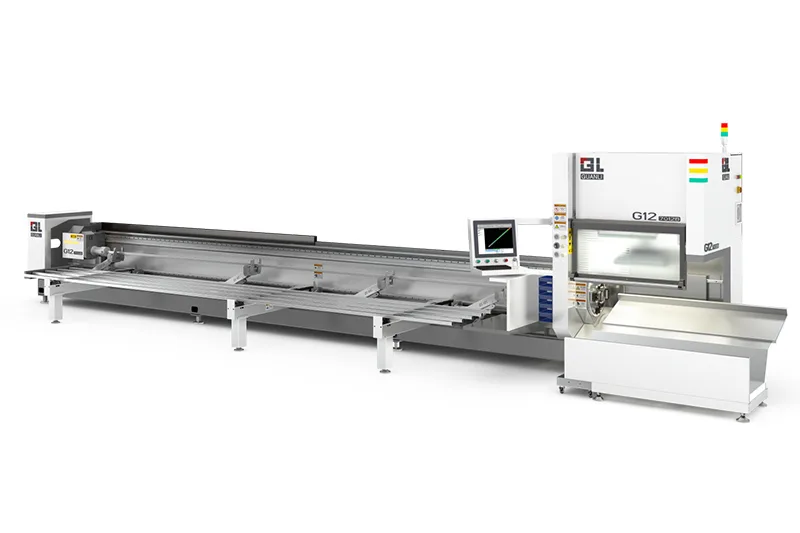

Standard Two Chuck Laser Tube Cutting Machine-7012B

The Standard Two Chuck Laser Tube Cutting Machine is designed for precise and efficient tube cutting, featuring dual chucks that secure the tube at both ends for stable processing. It offers high-speed, high-accuracy cutting for a wide range of tube materials and sizes.

Advantages and Characteristics

  • High speed:The chuck has a high speed of 160RPM, acceleration of 1.5G, high cutting efficiency, standard configuration, and competitive advantages in overall price.
  • Material saving:Chuck avoidance, 35-50mm ultra short tail material, breaking industry records and increasing material utilization.
  • High range compatibility:With a diameter of 10~120mm, it is compatible with circular pipes, square pipes, elliptical pipes, special-shaped pipes, etc., and has obvious advantages over thin-walled pipes.
  • High precision chuck:Real time stable control of clamping force, making machining accuracy more stable, automatic lubrication inside the chuck, reducing maintenance, and ensuring more stable operation of the structure.
  • Automatic feeding: Side suspended machine tool structure, standard semi-automatic feeding machine, high feeding cycle time of 20-25s.
  • Stability: Combined with pneumatic support to prevent pipe swinging and achieve high stability in cutting.
  • Low cost: There are no high cost consumables, and the main losses are electricity bills, protective lenses, and copper nozzles.

Video

Technical parameters of the whole machine

Category

Attribute

Parameter

Device Attributes









Equipment series

G1

outline dimension（mm）

9600*2300*2100

Total weight (ton)

3.4-3.7T/Fully automatic

Full power consumption of the whole machine（KW）

17～30

Operating temperature（℃）

0-40

machine range

Processing schedule（mm）

Round tube: ￠ 10- ￠ 120
Square tube: □ 10- □ 85
Rectangular tube maximum: 50*100

Travel Range



One time clamping stroke of chuck（mm）

 ￠ 12 to ￠ 120,

Y/X/Z/U axis travel (mm)

6950/120/250/Infinite rotation

Repeated positioning
Accuracy/speed







X/Y axis positioning accuracy (mm)

±0.031000
（6950±0.06）

X/Y axis repeat positioning accuracy (mm)

±0.03

Rotation U-axis repeat positioning accuracy (arc minutes)

≤5

Maximum rotational speed of U-axis (RPM)

150

Speed and Acceleration





Maximum acceleration on X/Y axis

1.5G

Maximum idle running speed of X-axis (m/min)

120 (beveling machine 60)

Maximum idle running speed of Y-axis (m/min)

150

Key components and motion control

Machine bed

Made of welded plates and pipes, annealed at high temperature of 600 degrees Celsius for 4.5 hours, slowly cooled to 200-300 degrees Celsius in the furnace, and then air-cooled to eliminate internal bed stress. After rough machining, precision machining is carried out, greatly improving the rigidity and stability of the machine tool and ensuring its long-term stability and accuracy. The side mounted machine tool structure, paired with an automatic feeding machine, can effectively improve feeding efficiency and ease of unloading.

Machine Bed2

Rigidity: Welding of plates and pipes, the bed structure is connected horizontally and vertically by multiple reinforced rib tube plates to ensure rigidity.

Machine Bed1

Welding: The welds on both sides are evenly distributed, symmetrically and staggered, reducing welding deformation.

Annealing Report

Annealing report: Each bed frame number has an annealing report

Fully automatic feeding machine, semi-automatic unloading machine

It can achieve automatic feeding of a bundle of raw materials, matching the feeding and positioning of the clamping jaws for feeding, and accurately clamping the profiles with the rear card to insert them forward.

Automatic Feeding Machine
Automatic Feeding Machine2

The standard machine can store a maximum of one bundle of materials

Oil Spray Pollution Device

Oil spray pollution device

Low voltage electrical system

The low-voltage electrical system is located inside the electrical control cabinet and is the interface part of the overall electrical control. The power supply, relays, circuit breakers, contactors, servo drive systems, etc. required for the electrical control system are all installed in the electrical control cabinet. Bus motors are used to reduce wiring.

Numerical Connection Diagram

Numerical Connection Diagram

Schematic Diagram Of Electrical Cabinet

Schematic diagram of electrical cabinet
