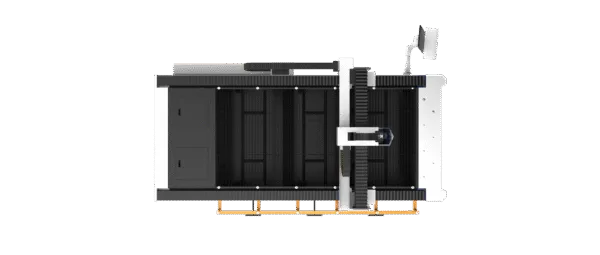

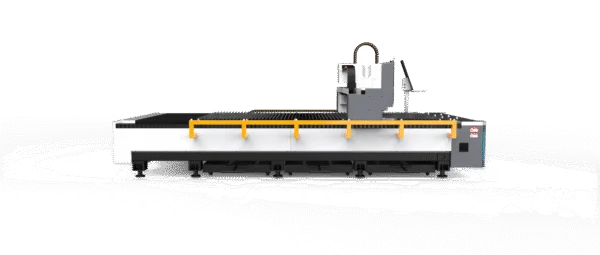

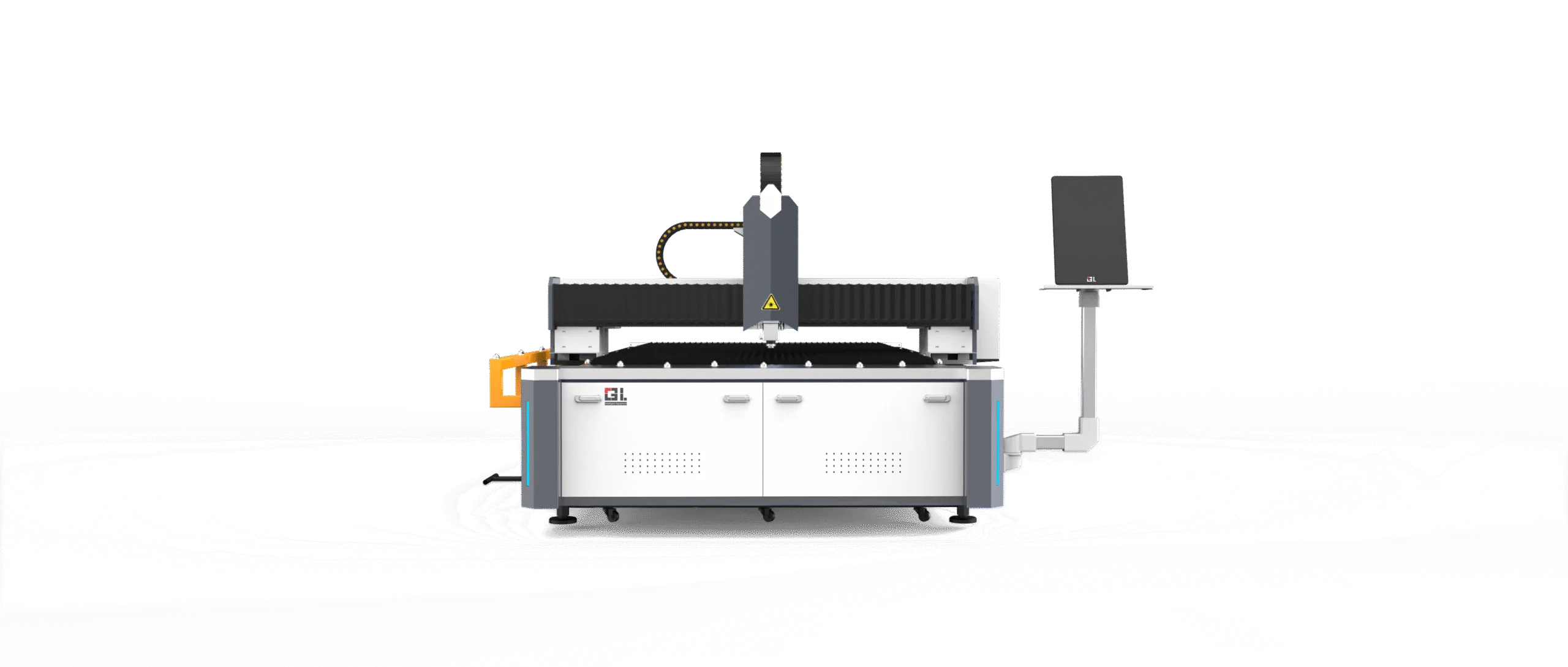

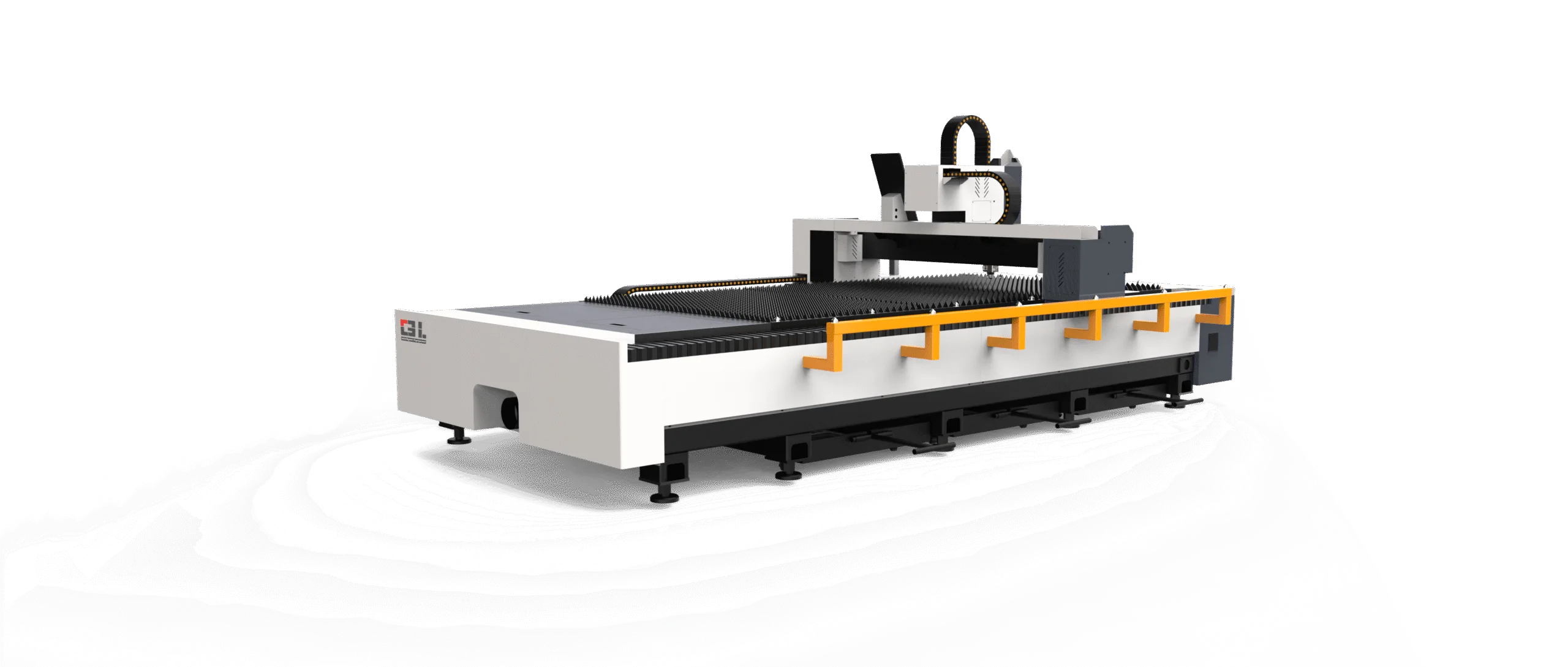

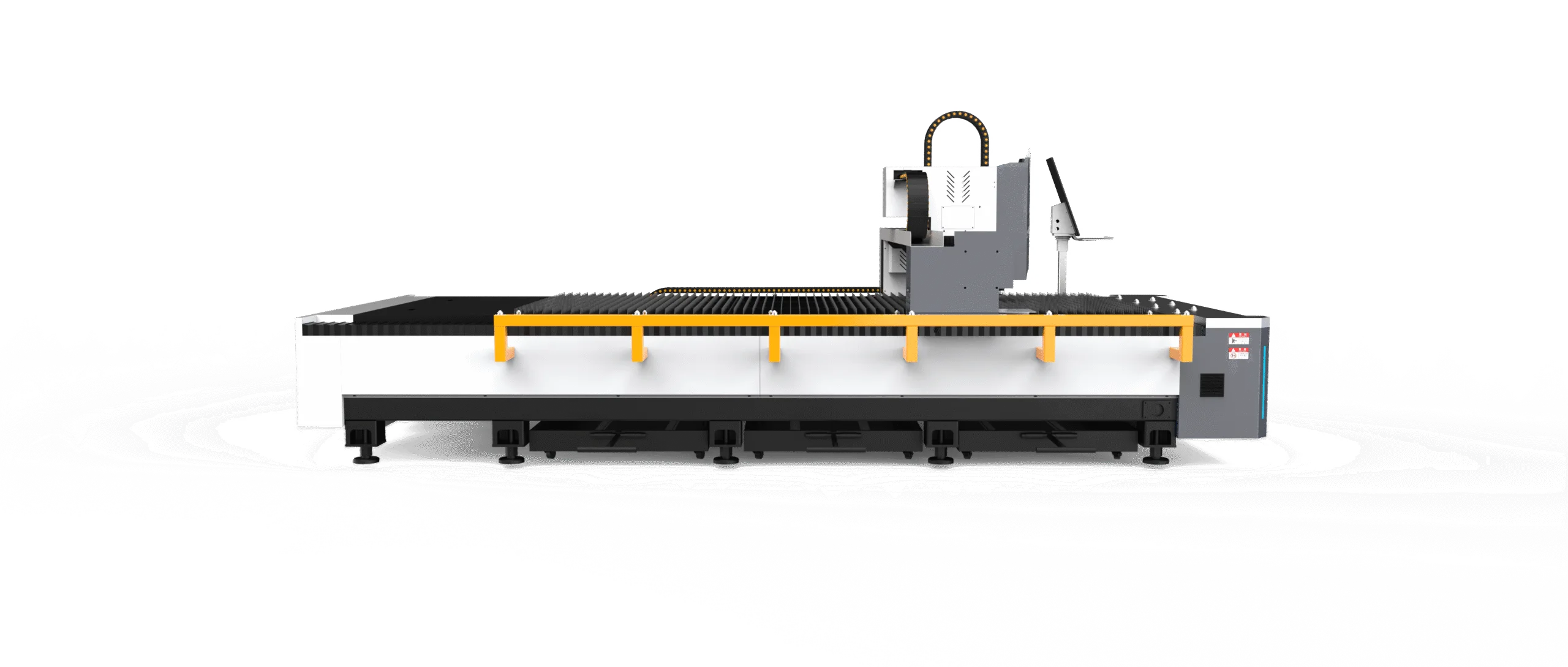

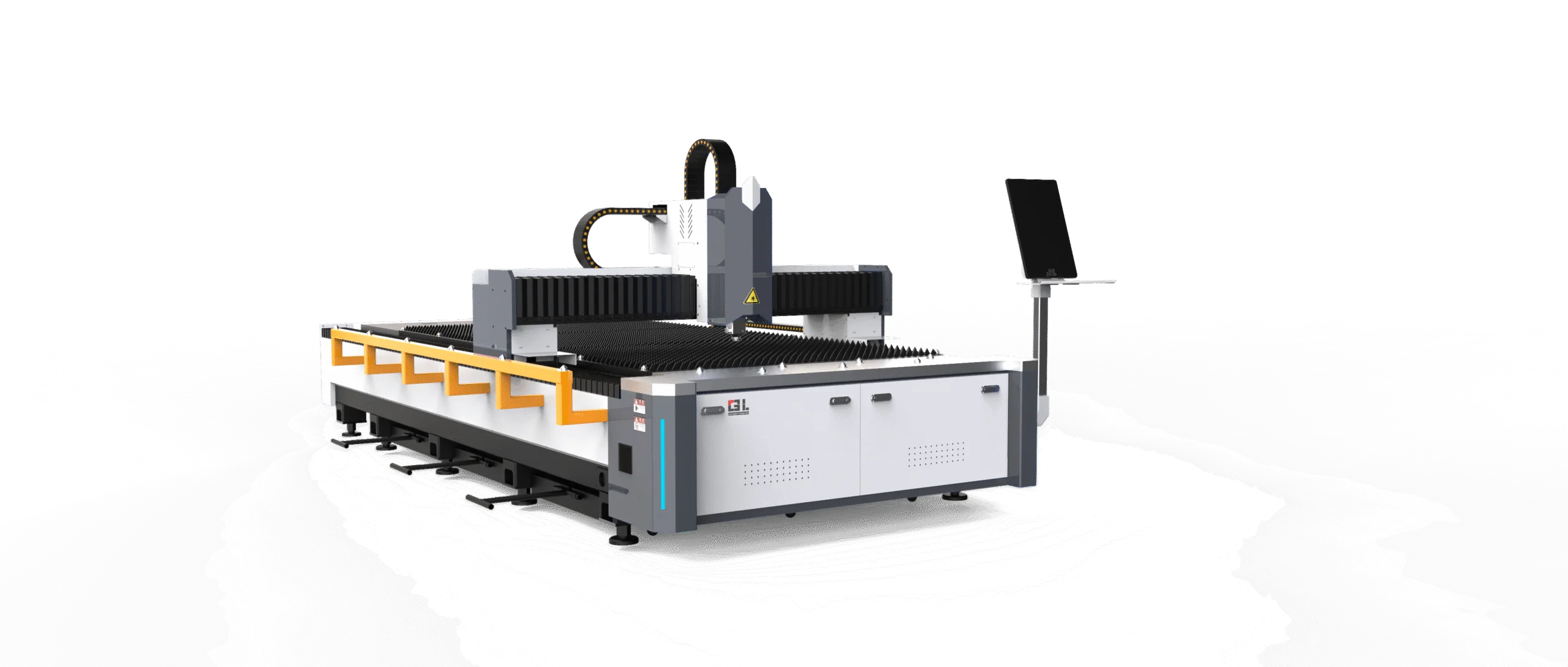

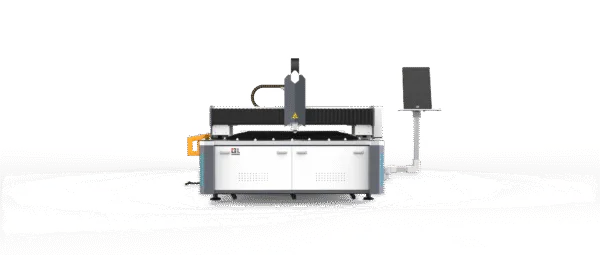

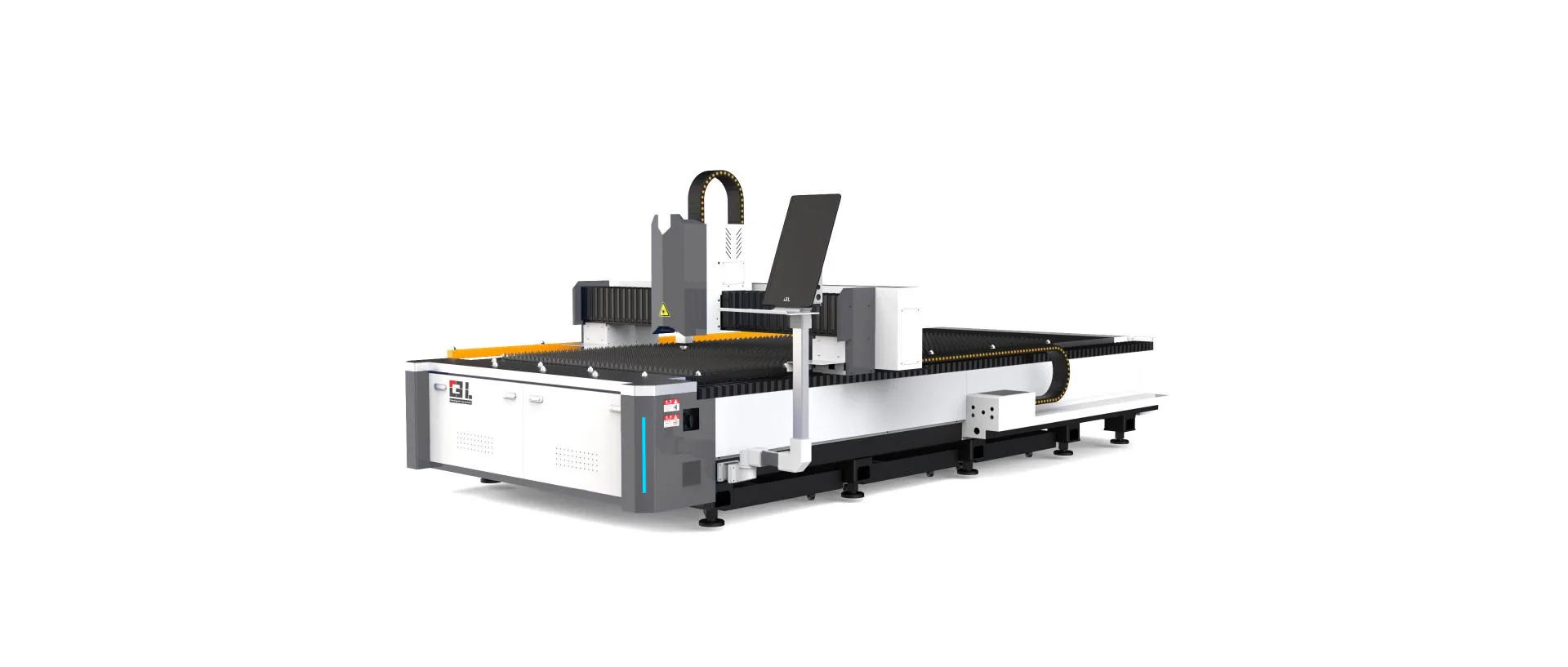

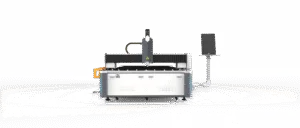

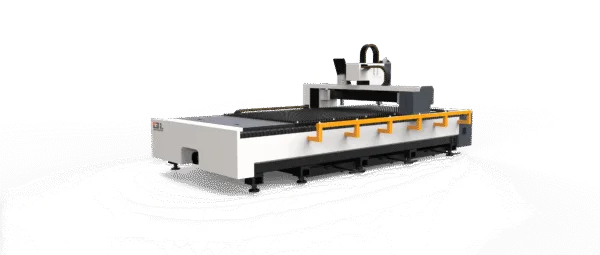

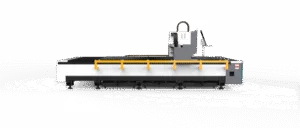

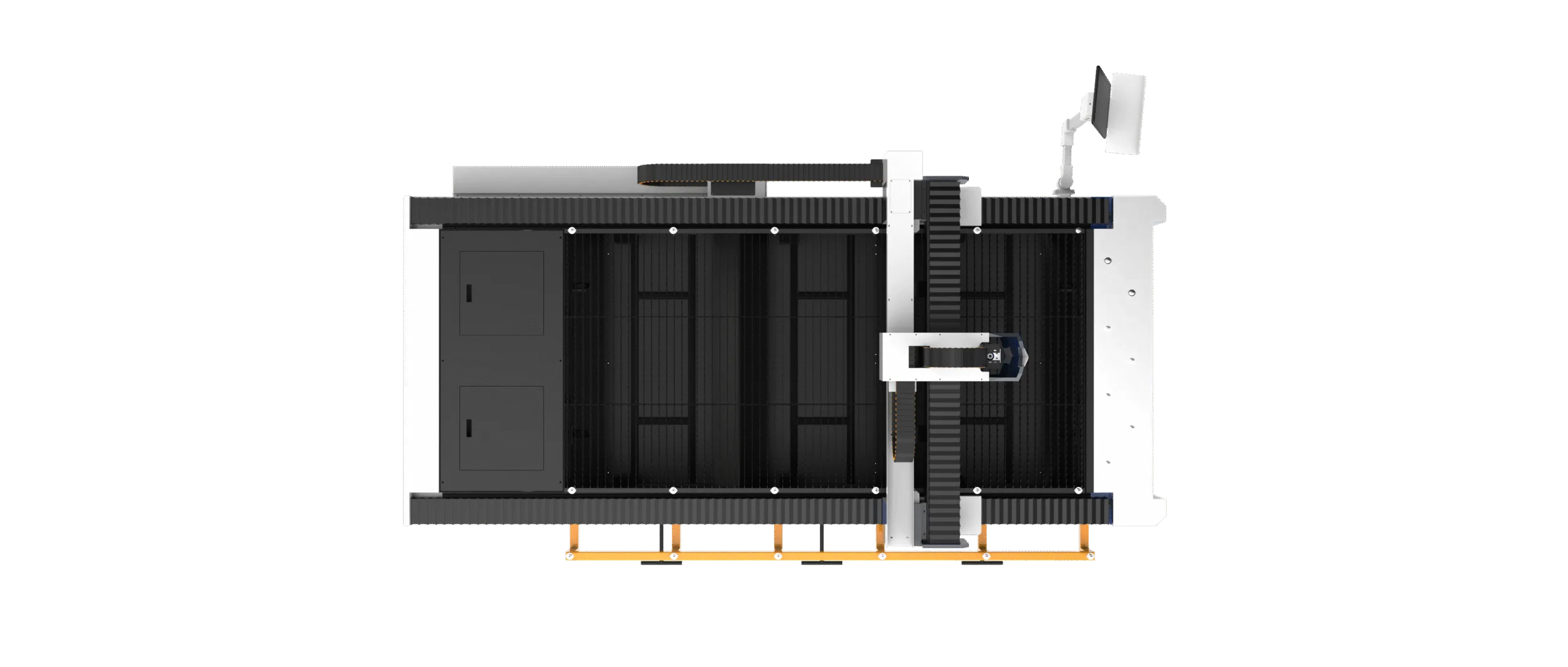

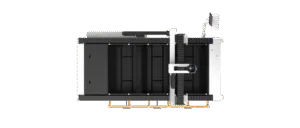

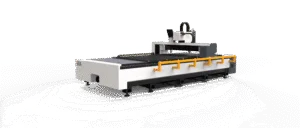

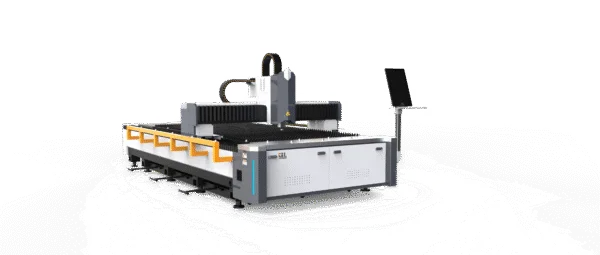

Single Platform-Laser Cutting Machine

Single-platform laser cutting machines (1500-6000W) cut thin to medium metal sheets with precision. Compact, low-maintenance, and versatile, they boost efficiency for small to medium enterprises

Advantages and Characteristics

  • Durable Construction
    Each workbed undergoes high-temperature annealing, vibration aging, and natural aging for long-term stability and reliable operation.
  • Superior Beam Performance
    Ultra-high tensile aviation aluminum beam delivers exceptional dynamic performance, surpassing industry standards.
  • User-Friendly Interface
    Intuitive touch-control system simplifies laser cutting, enhancing compatibility, flexibility, and efficiency.
  • Precision Servo Drive
    Top-tier servo drive system ensures high-accuracy, high-speed cutting with consistent stability.
  • Intelligent Cutting Head
    Advanced cutting head optimizes quality and productivity, boosting cutting speed by up to 25%.

Main Configuration

Model Name: Single table Fiber Laser Cutting Machine 1500-6000W middle power
Laser source MAX/Raycus/IPG Optional
Control system BOCHU FSCUT
Laser head BOCHU BOCI

Product technical parameters

Model S3015 S4015 S6015 S4020 S6020 S6025 S8025 S12025
Working Size 3040mm×

1530mm

 4100mm×

2030mm

 6100mm×

2030mm

 6100mm×

2550mm

 6100mm×

2550mm

 6100mm×

2550mm

 3040mm×

1530mm

 4100mm×

2030mm
Position Accuracy 0.05mm/m 0.05mm/m 0.05mm/m 0.05mm/m 0.05mm/m 0.05mm/m 0.05mm/m 0.05mm/m
Repeat Accuracy 0.02mm/m 0.02mm/m 0.02mm/m 0.02mm/m 0.02mm/m 0.02mm/m 0.02mm/m 0.02mm/m
Maximum Speed 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min 120m/min
Maximum Acceleration Speed 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G 1.2G

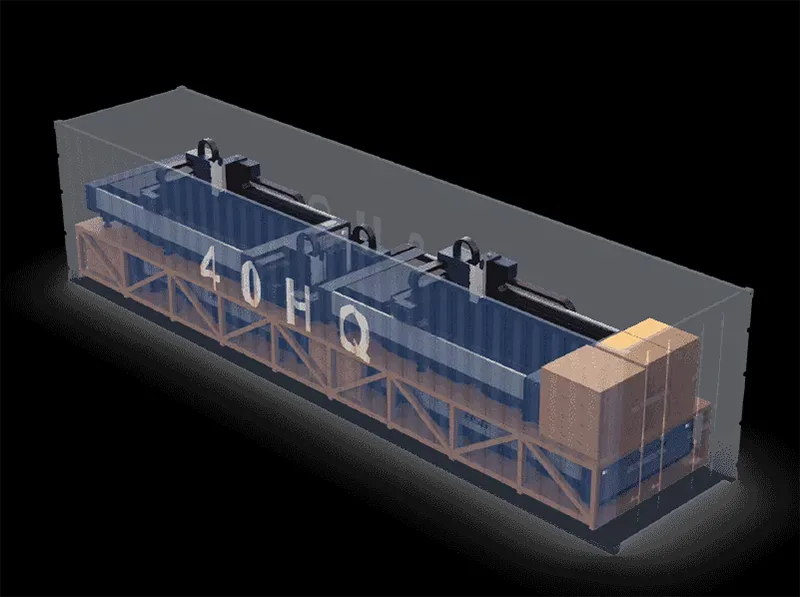

Package

未标题 1

Cutting samples

切板机例子

Applicable Industries and Applications
