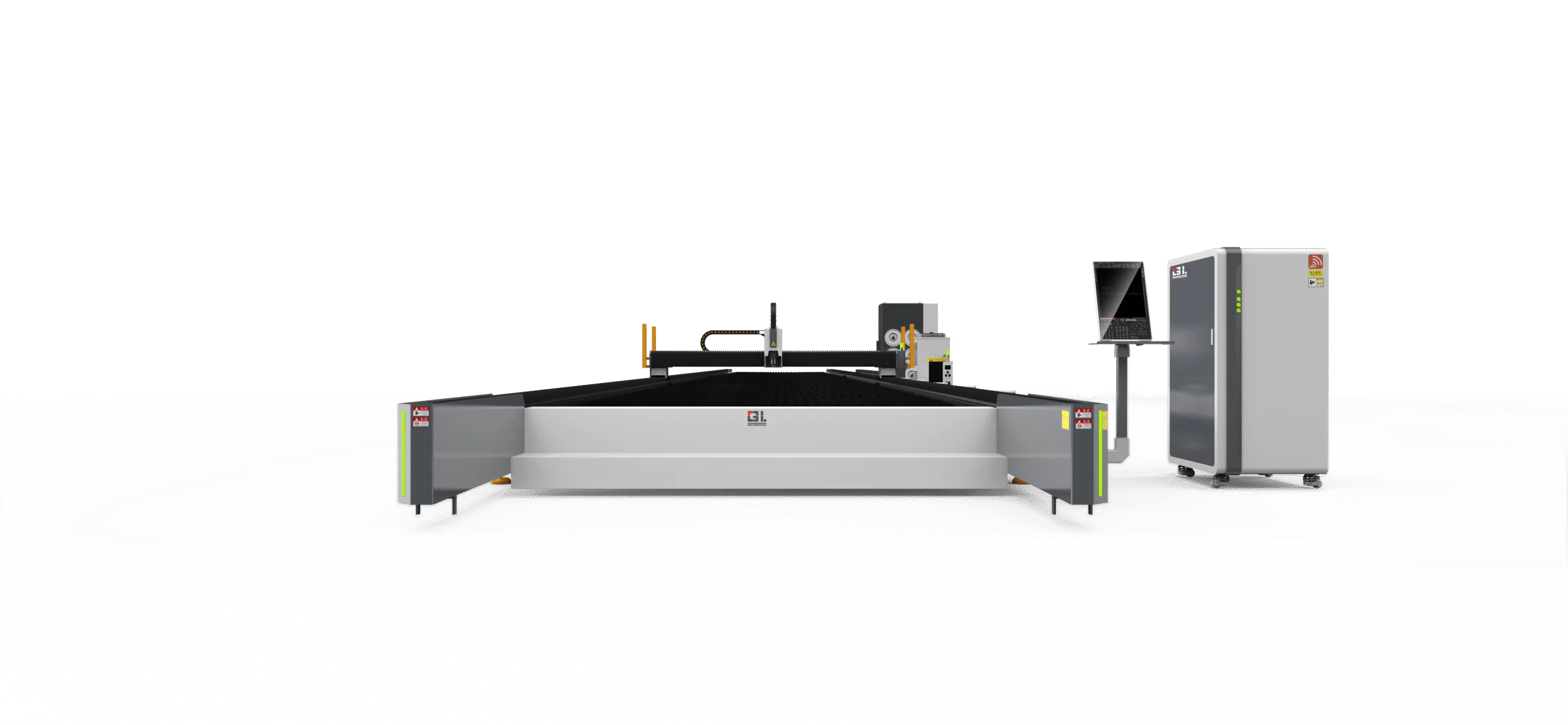

HG High Power-Large Format-Gantry Laser Cutting Machine

The floor-mounted high-power laser cutting machine with a power of up to 30,000W is suitable for heavy industries such as shipbuilding, aerospace, automotive and construction. It is designed for efficient and precise cutting of thick metal plates, ensuring unparalleled performance and reliability, meeting the stringent needs of industrial applications with excellent accuracy and speed.

Email us

Get Quote

Description

Advantages and Characteristics

Enhanced Precision with Independent Design
The separate worktable and machine bed minimize heat impact from laser cutting, ensuring superior precision, durability, and long-term stability for high-precision applications.
Cost-Effective Modular Shipping
Modular design allows disassembly for compact packaging, enabling multiple units per container, reducing shipping costs, and optimizing global distribution.
Flexible Configurations for All Scales
Modular assembly offers customizable sizes, adapting to small-scale and large industrial needs, from precision cutting to large-format applications.
Eco-Friendly High-Efficiency Cutting
Replaces plasma and flame cutting with clean, precise cuts, minimizing waste and energy use for sustainable, efficient production.
Easy Setup and Low Maintenance
Quick-install modular design reduces downtime and maintenance, ensuring cost-effective, long-term operation with maximum uptime.
Large-Format High-Volume Cutting
Handles large metal sheets effortlessly, ideal for high-power, high-efficiency production in mass or heavy-duty applications.
Energy-Saving and Cost-Effective
Energy-efficient design lowers operational costs and environmental impact, supporting sustainable production compared to traditional methods.
Rapid Modular Assembly for Bulk Orders
Easily transported in standard containers, modular components enable fast assembly and delivery, perfect for bulk procurement and dealer inventory.
High-Power Precision Cutting
Delivers fast, high-quality cuts, outperforming traditional methods with superior performance and productivity for demanding industries.
Versatile Material Processing
Cuts carbon steel, stainless steel, aluminum, and more, ideal for metal sheet cutting, custom fabrication, and diverse industrial applications.

Main Configuration

Model Name: HG Series high power gantry laser cutting machine for large cutting format 12000W-60000W laser
Laser source				MAX Photonics
Control system				BOCHU HYPCUT
Laser head				BOCHU BOCI

Product technical parameters

Model	HG12025	HG12031	HG14031	HG20041	HG24041	HG30041
Working Size	12100mm×2600mm	12100mm*3600mm	14100mm*3600mm	20100mm*4100mm	24100mm*4100mm	30100mm*4100mm
Position Accuracy	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m
Repeat Accuracy	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m
Maximum Speed	80m/min	80m/min	80m/min	80m/min	80m/min	80m/min
Maximum Acceleration Speed	1.2G	1.2G	1.2G	1.2G	1.2G	1.2G
