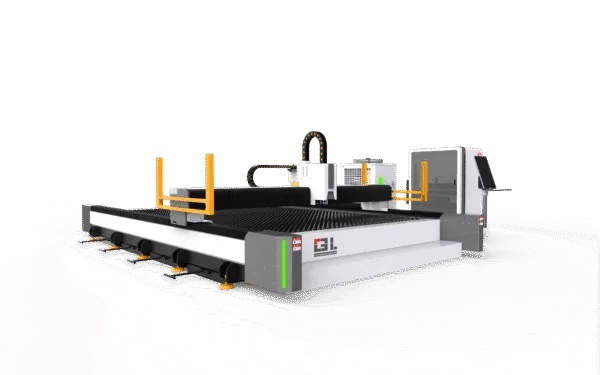

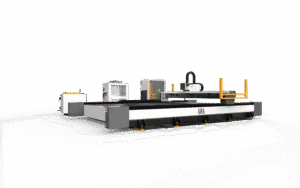

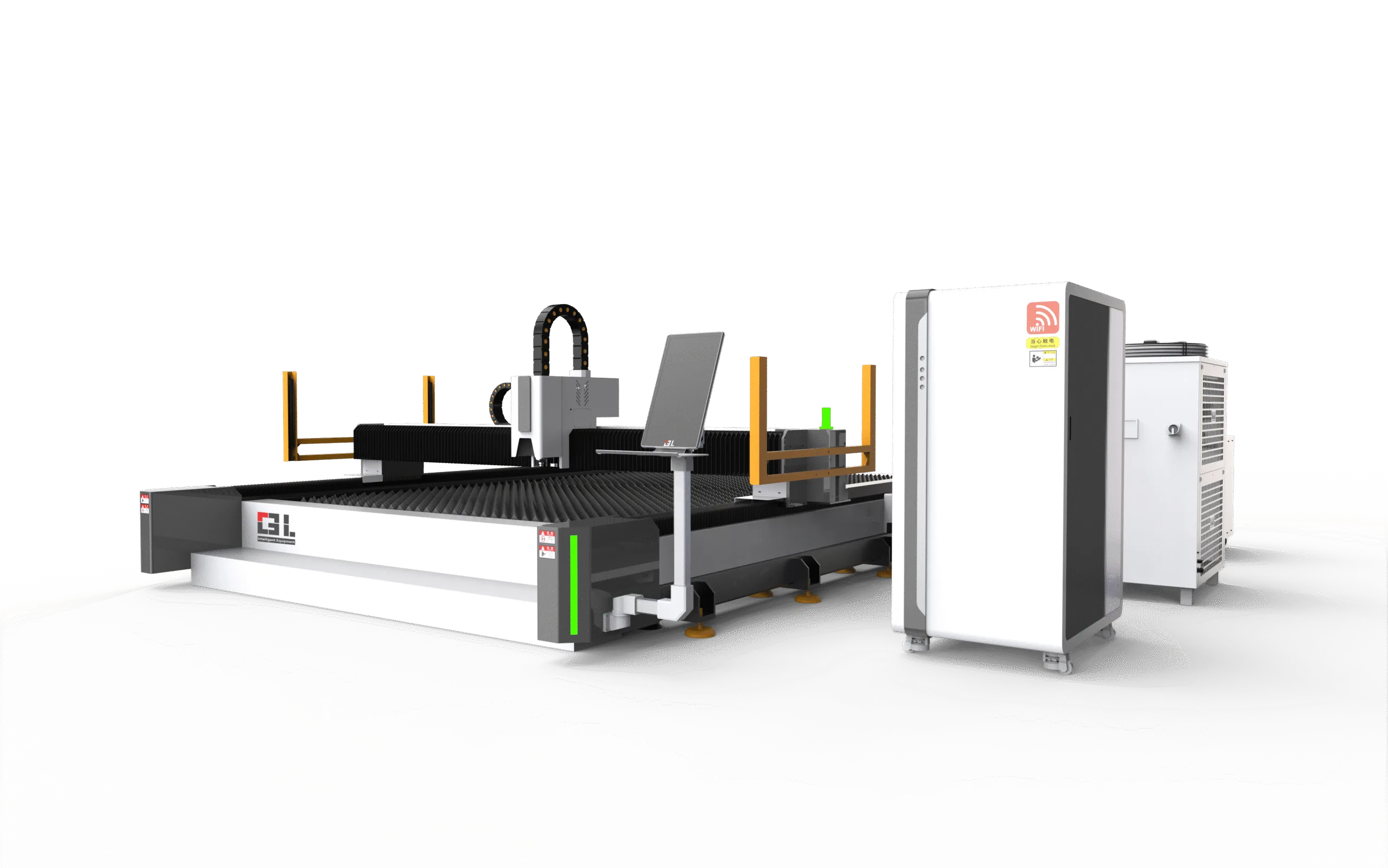

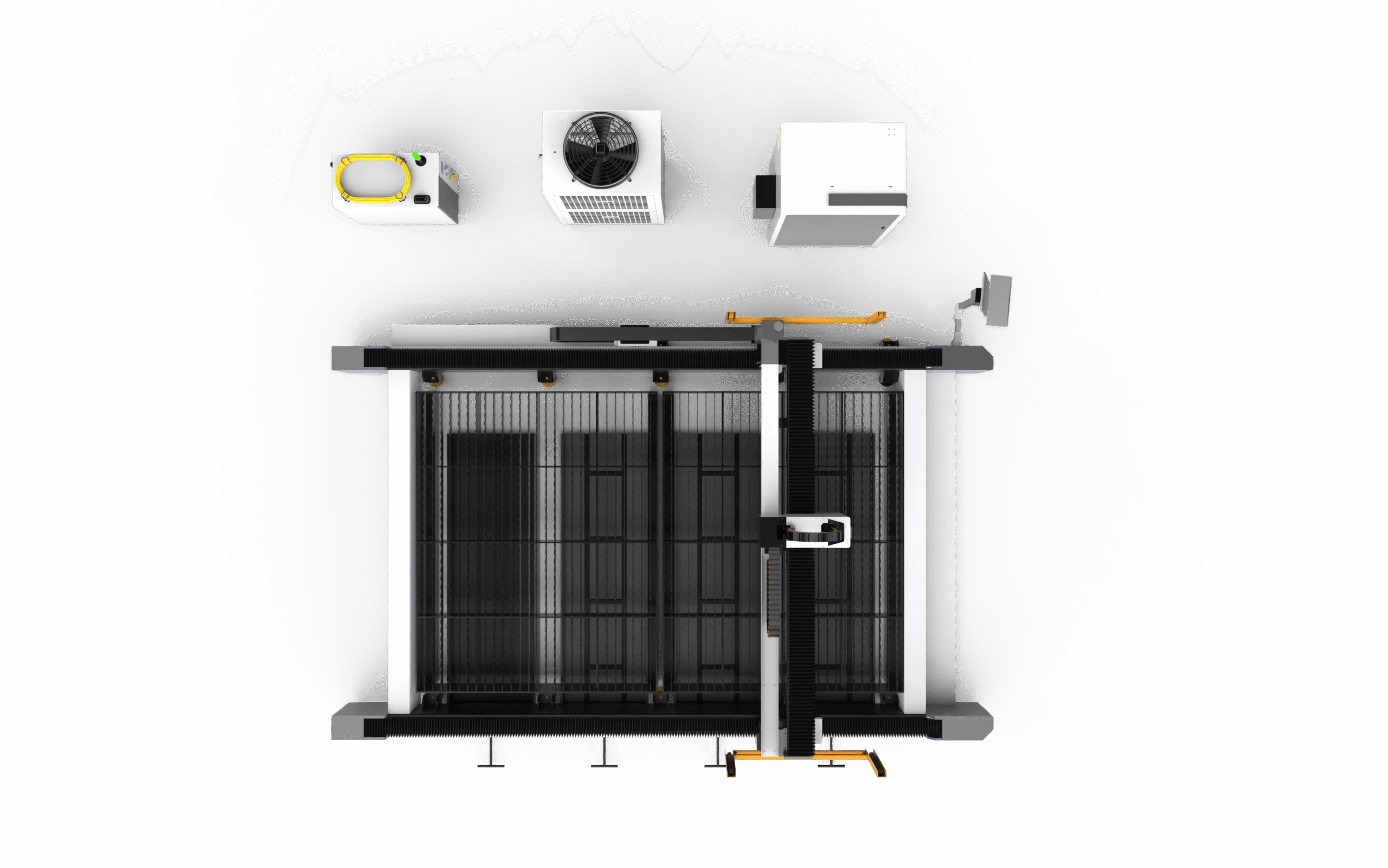

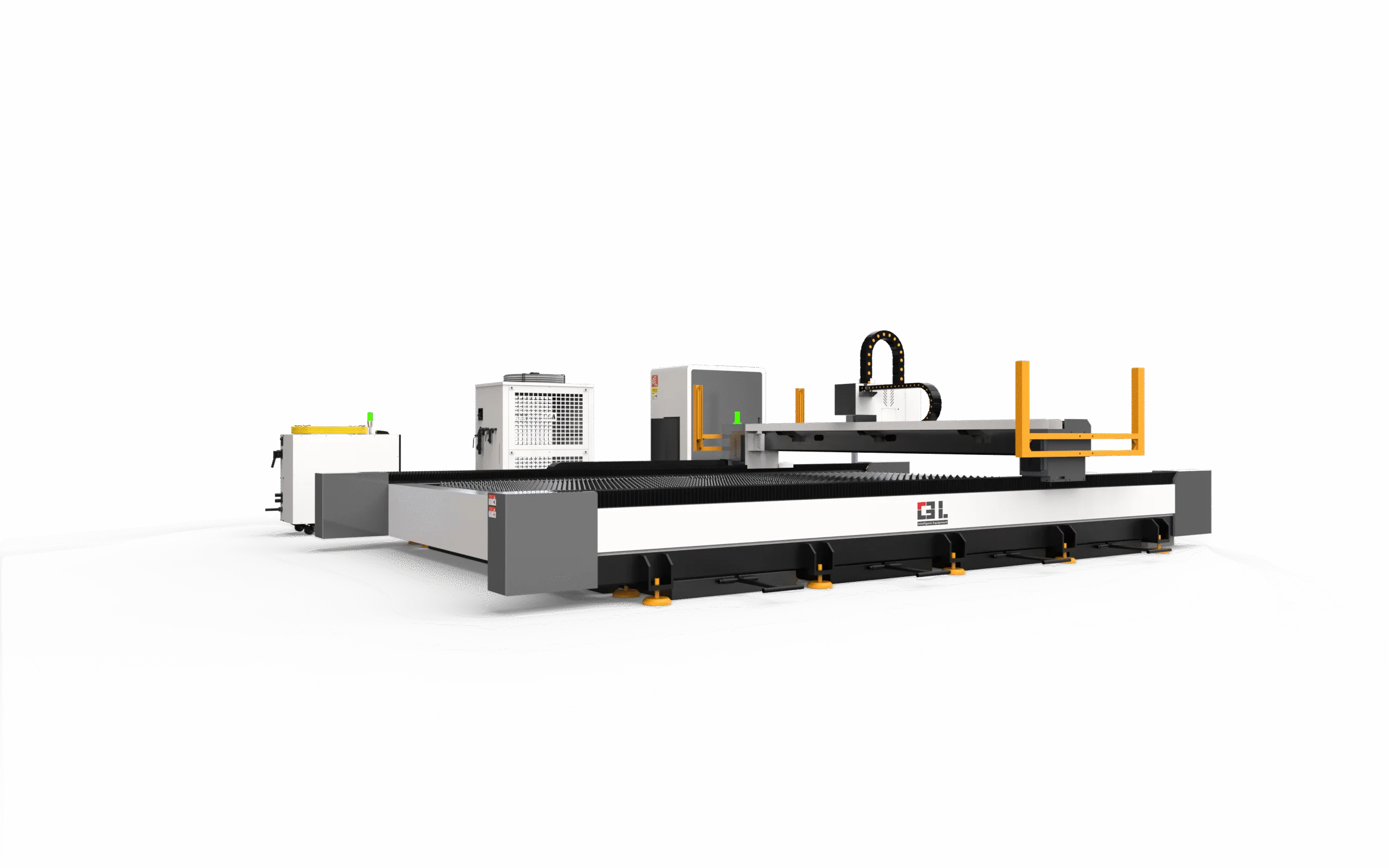

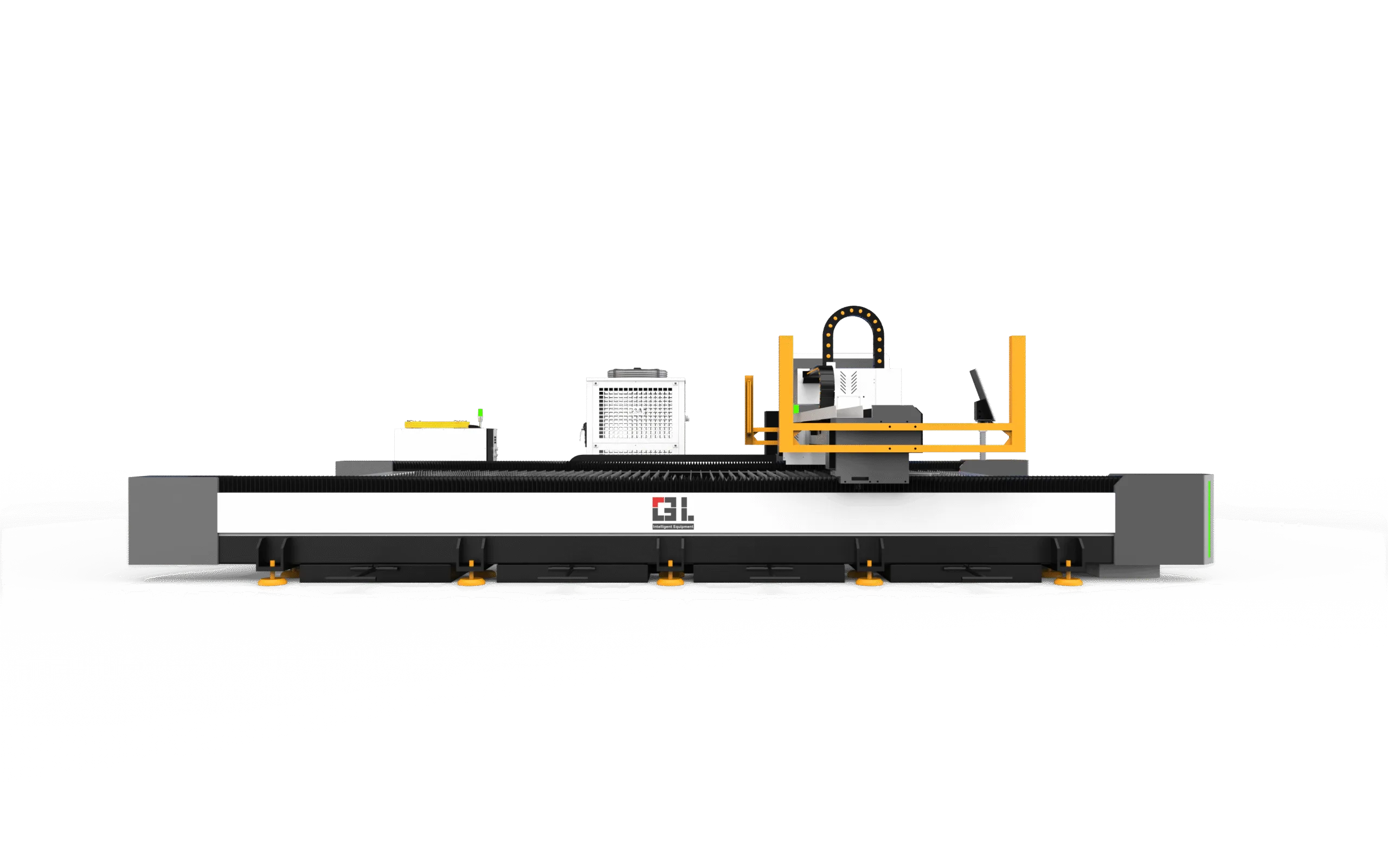

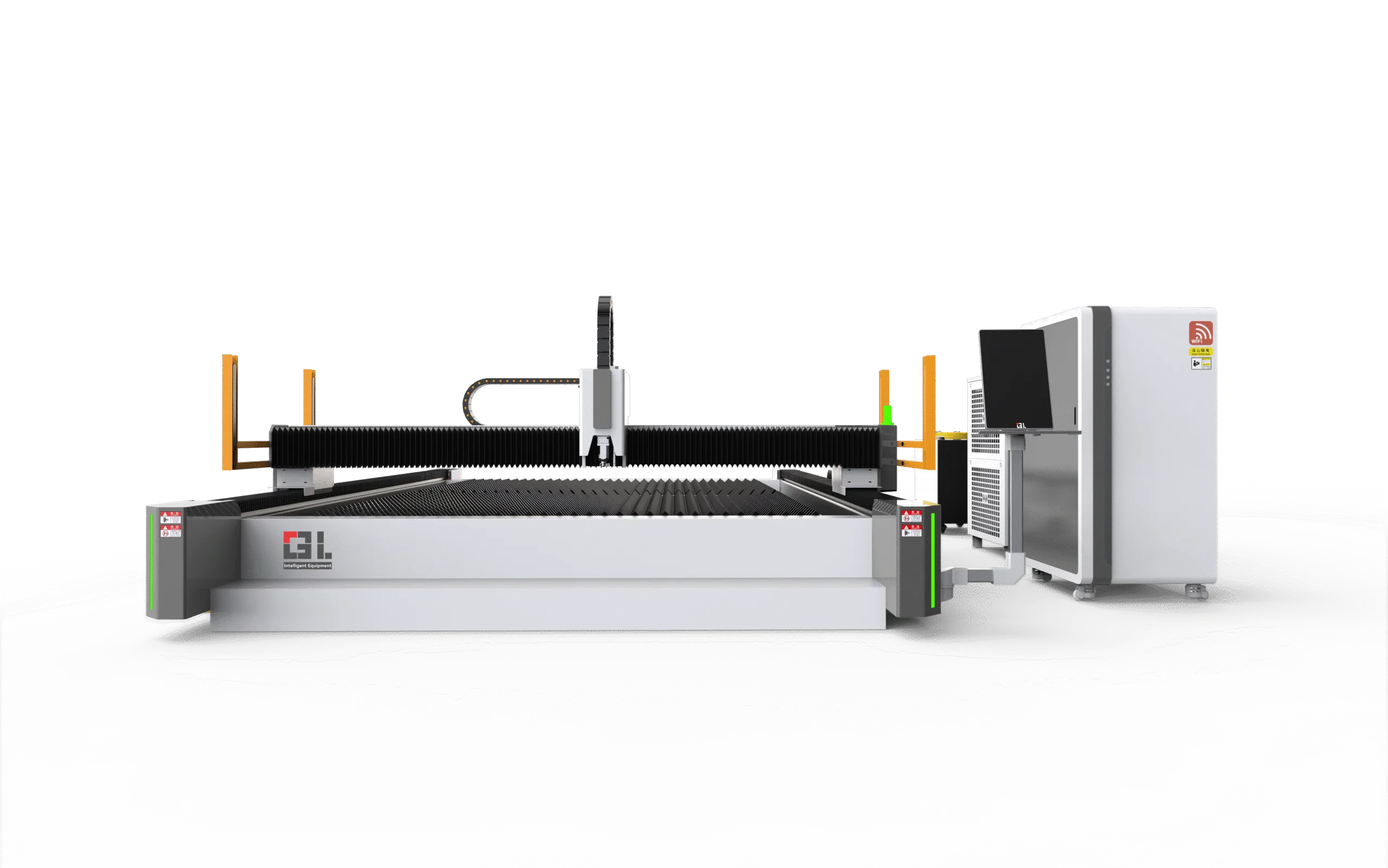

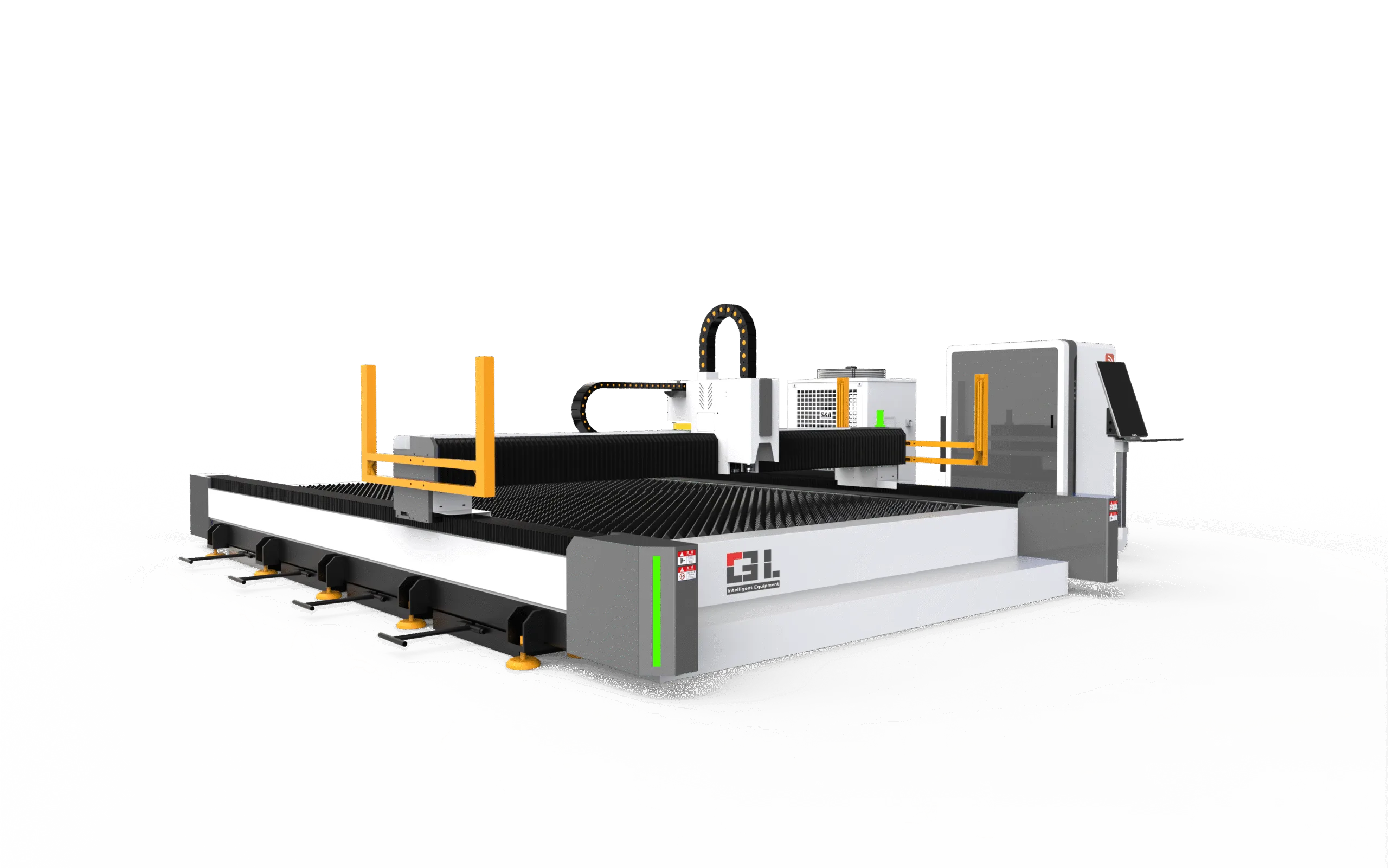

HG Budget-Smaller Format Gantry Laser Cutting Machine

Experience faster, stronger cutting with our high-power metal cutting machine. Its innovative bed and worktable separation design minimizes heat impact, extending bed lifespan. The modular design enables disassembled bulk shipping, reducing freight costs. Professional after-sales installation ensures quick production readiness. Empower your large-scale fabrication with improved efficiency and lower costs, tackling demanding projects with ease.

Email us

Get Quote

Description

Advantages and Characteristics

Independent Worktable and Machine Bed
The innovative independent worktable design isolates the machine bed from laser cutting heat, preventing thermal deformation. This ensures sustained precision and stability, ideal for high-precision industrial applications, with enhanced durability for long-term performance.
Modular Design for Cost-Effective Shipping
The machine’s modular design enables disassembly for compact packaging, reducing shipping costs. Multiple units fit into a single container, streamlining international and bulk shipments while maintaining product quality for cost-efficient logistics.
Versatile Modular Assembly
With flexible size configurations, the modular assembly adapts to diverse needs, from compact workshops to large-scale industrial setups. This customizable design maximizes usability and versatility across various manufacturing environments.
Streamlined Installation and Maintenance
Simplified assembly ensures quick, hassle-free installation, while the modular structure facilitates easy maintenance. This reduces downtime and operational costs, delivering an efficient, economical solution throughout the machine’s lifecycle.

[/row]

Main Configuration

Model Name: HG Series Budget gantry laser cutting machine with adjustable dimensions 6000W-60000W
Laser source				MAX Photonics
Control system				MAX Photonics
Laser head				MAX Photonics

Product technical parameters

Model	HG3015	HG4015	HG6015	HG4020	HG6020	HG6025	HG8025
Working Size	3100mm ×1600mm	4100mm ×1600mm	6100mm ×1600mm	4100mm ×2100mm	6100mm ×2100mm	6100mm *2600mm	8100mm ×2600mm
Position Accuracy	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m
Repeat Accuracy	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m
Maximum Speed	80m/min	80m/min	80m/min	80m/min	80m/min	80m/min	80m/min
Maximum Acceleration Speed	1.2G	1.2G	1.2G	1.2G	1.2G	1.2G	1.2G
	HG12025	HG12035	HG15035	HG20040	HG24040	HG30040
	12100mm ×2600mm	12100mm ×3600mm	14100mm ×3600mm	20100mm ×4100mm	24100mm ×4100mm	30100mm ×4100mm
	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m	0.05mm/m
	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m	0.03mm/m
	80m/min	80m/min	80m/min	80m/min	80m/min	80m/min
	1.2G	1.2G	1.2G	1.2G	1.2G	1.2G

Cutting samples

Applicable Industries and Applications

Industries

Metal Fabrication: This machine excels in precision sheet and plate cutting, making it indispensable for manufacturers in construction, heavy machinery, and metalworking. The independent worktable ensures thermal distortion is minimized, maintaining high accuracy in metal fabrication tasks.
Automotive Industry: The laser cutter’s precision capabilities are ideal for creating complex automotive parts such as frames, exhaust systems, and interior trims, supporting the high standards required in car manufacturing.
Aerospace and Defense: With its ability to produce lightweight, high-tolerance components, this machine is a perfect fit for aerospace parts and defense equipment, where precision and durability are critical.
Electronics and 3C Products: The laser cutter is widely used for precision crafting of housings, brackets, and structural parts in consumer electronics like smartphones and laptops, meeting the increasing demand for high-quality electronics manufacturing.
Furniture and Interior Design: Its ability to create intricate patterns and structural components makes it an excellent tool for metal furniture manufacturing and decorative interior designs.
Medical Devices: The machine ensures high accuracy and material integrity in the production of medical instrument components, aligning with the stringent requirements of the healthcare industry.
Renewable Energy and Solar Industry: This laser cutter is a reliable solution for manufacturing solar panel frames, mounting structures, and other components for renewable energy systems, supporting sustainable energy initiatives.

Applications

Custom Part Manufacturing: The machine’s modular design and flexible configurations make it suitable for tailored part production across various industries, allowing businesses to meet unique customer demands with precision.
High-Precision Prototyping: Ideal for research and development, the machine delivers consistent accuracy, enabling rapid prototyping for new product designs. This adaptability makes it an essential tool for R&D teams.
Large-Scale Production: The modular design supports efficient bulk manufacturing while minimizing shipping costs, making it suitable for high-volume production without sacrificing precision.
Compact Workshop Solutions: For smaller factories or workshops, the machine’s customizable size and compact design provide a space-saving solution that doesn’t compromise functionality.
Heat-Sensitive Materials: The independent worktable design ensures the thermal stability required for cutting delicate and heat-sensitive materials, making it a reliable choice for industries with strict material integrity requirements.
