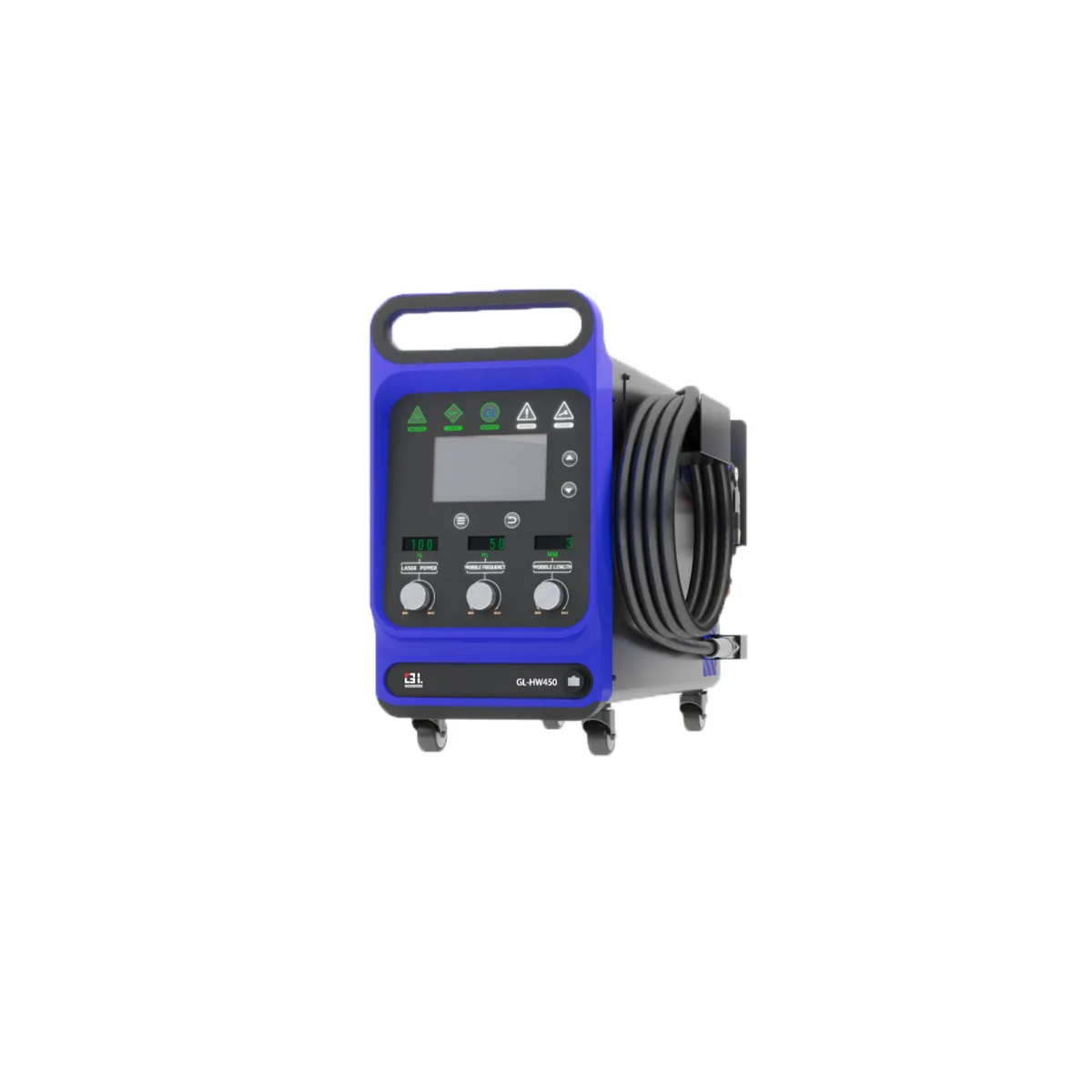

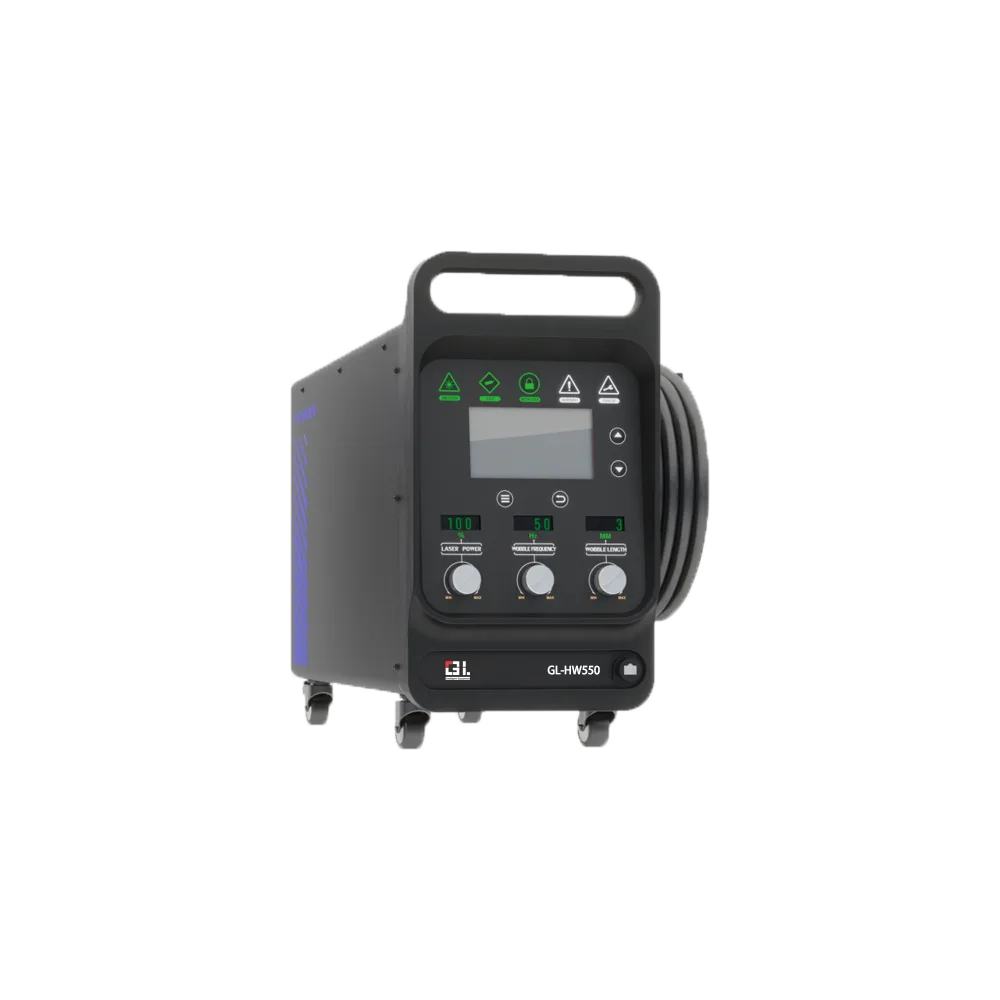

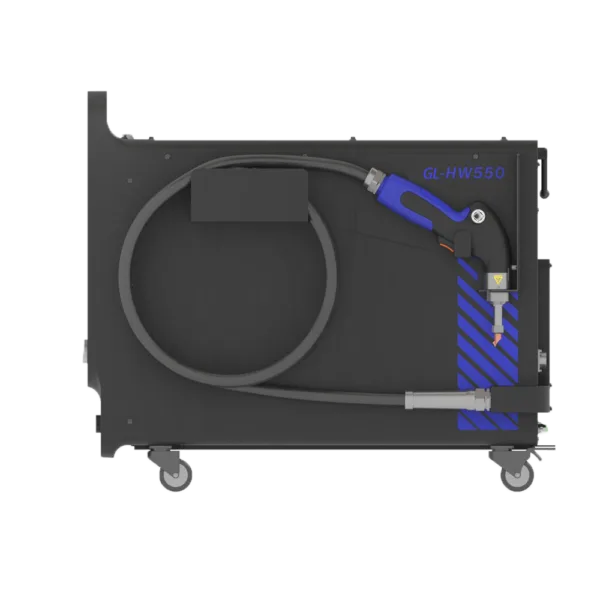

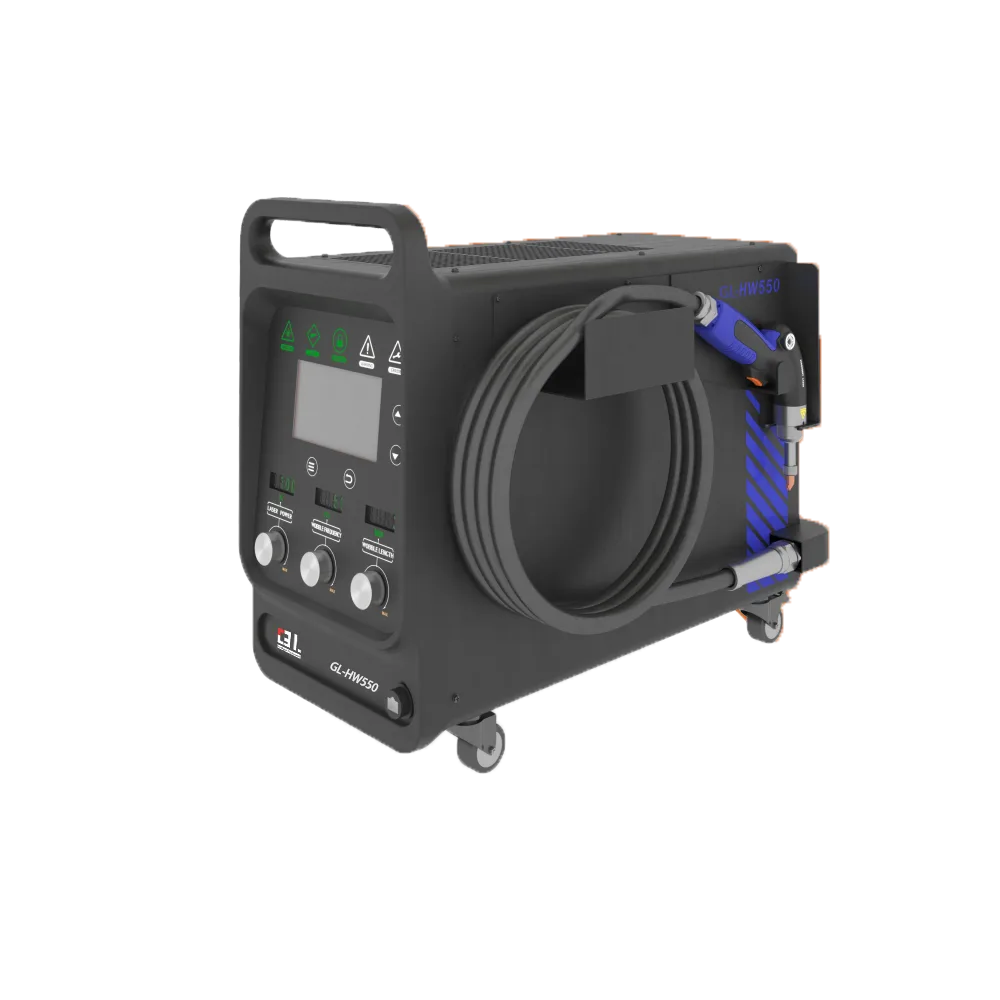

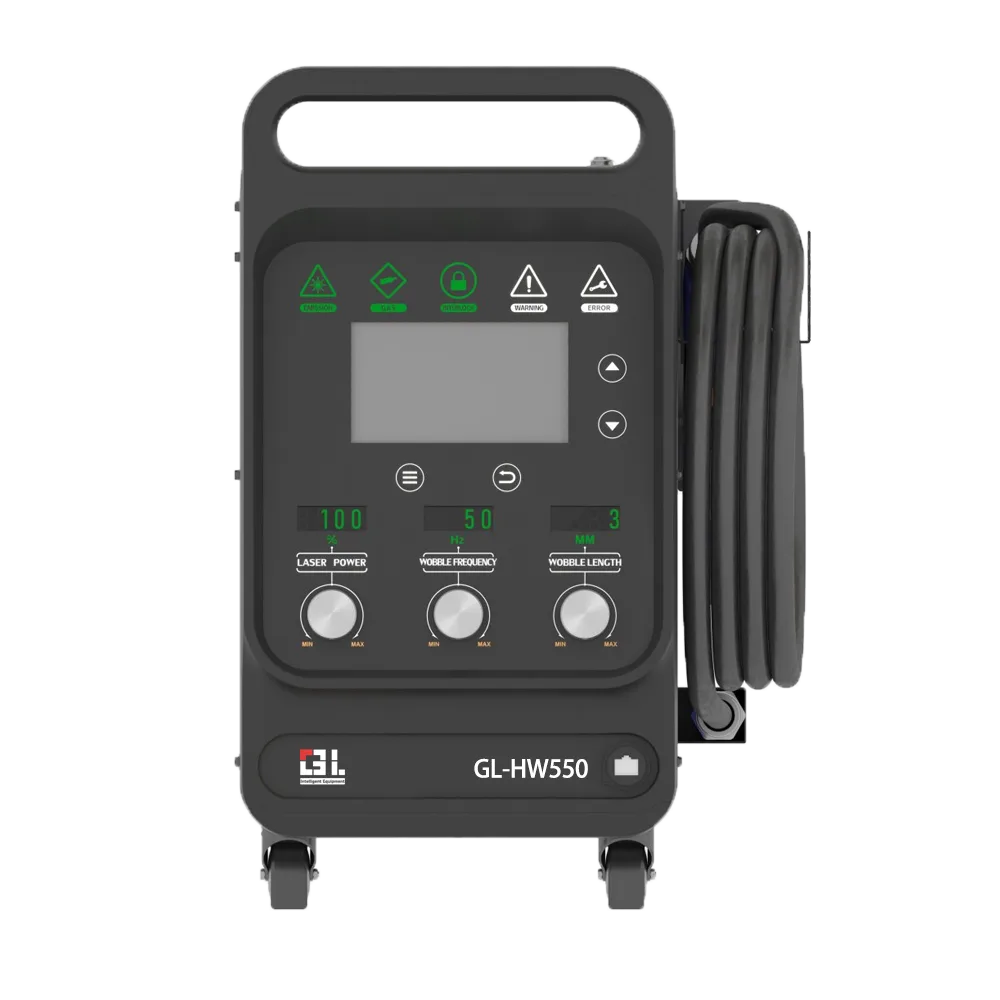

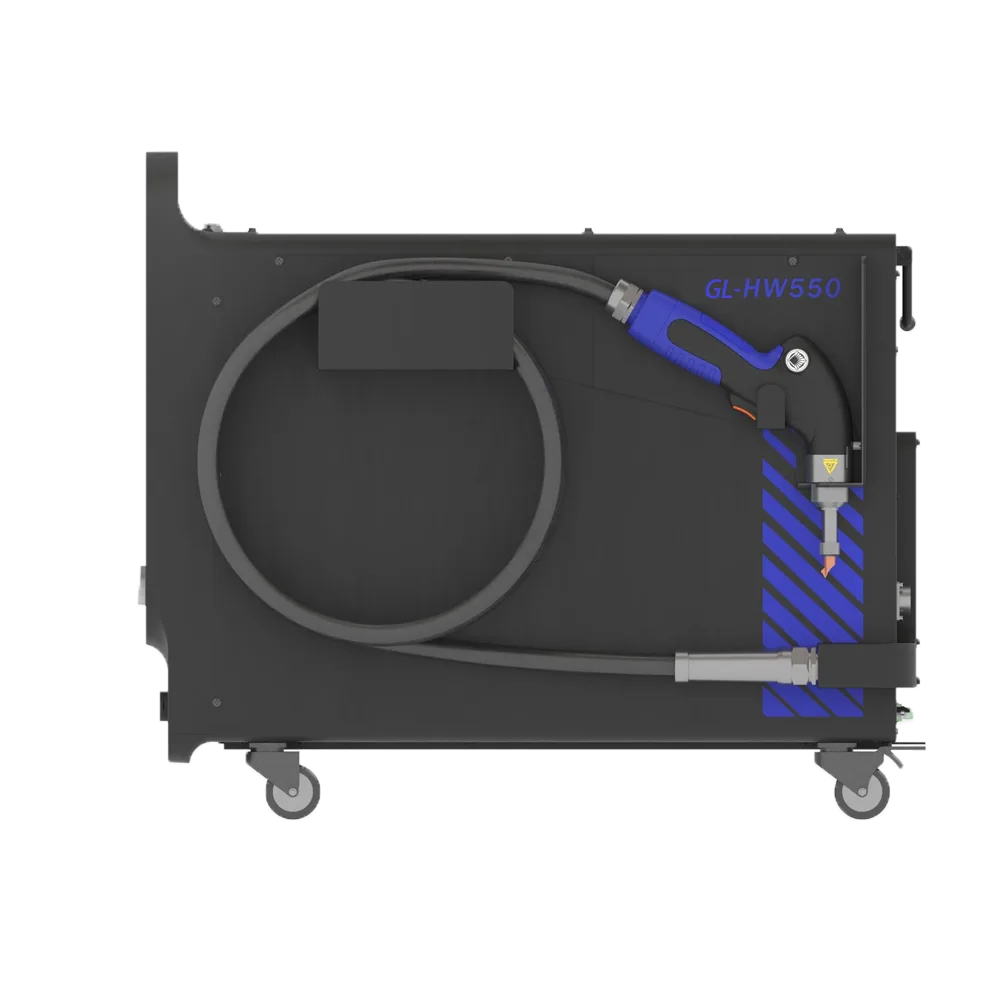

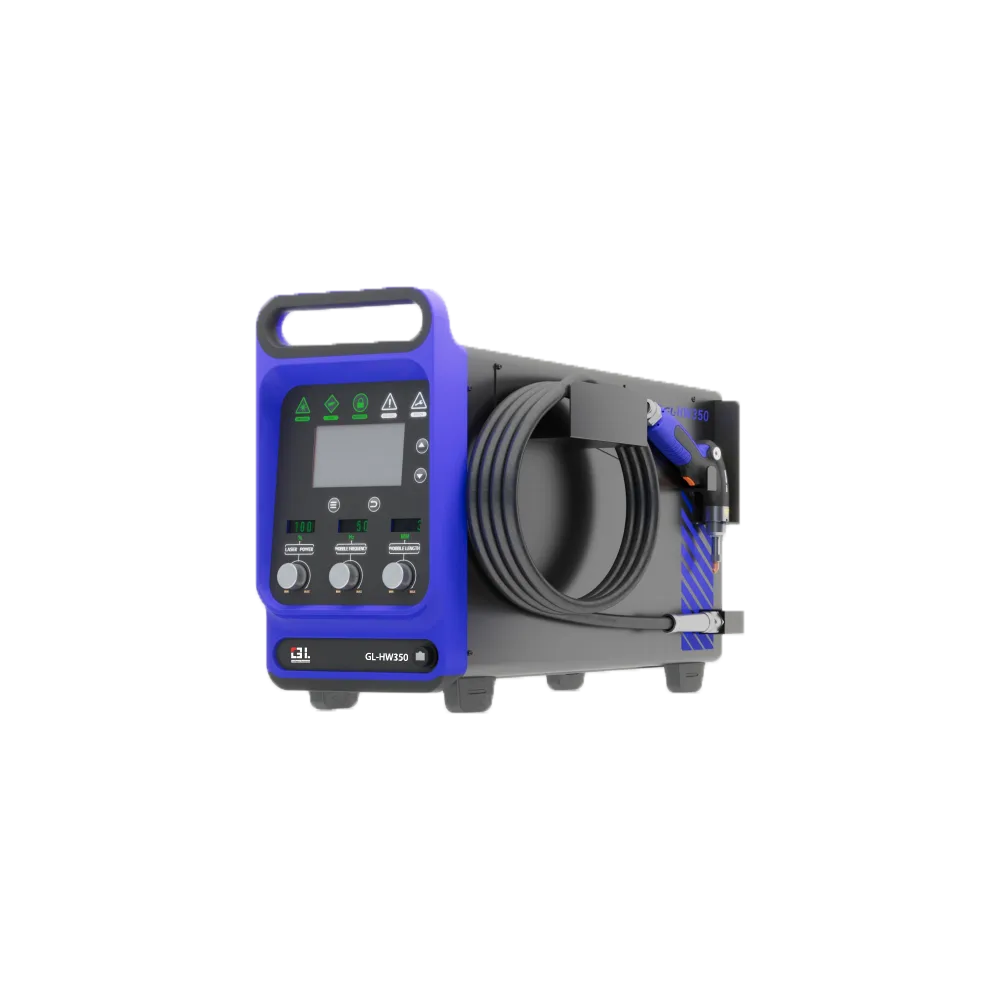

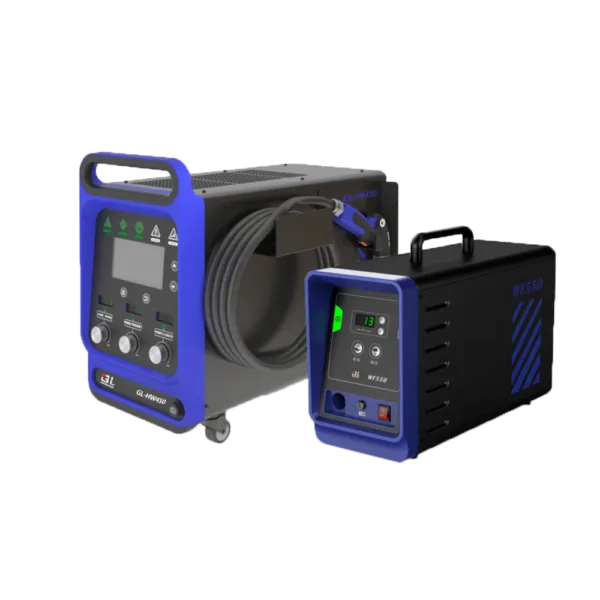

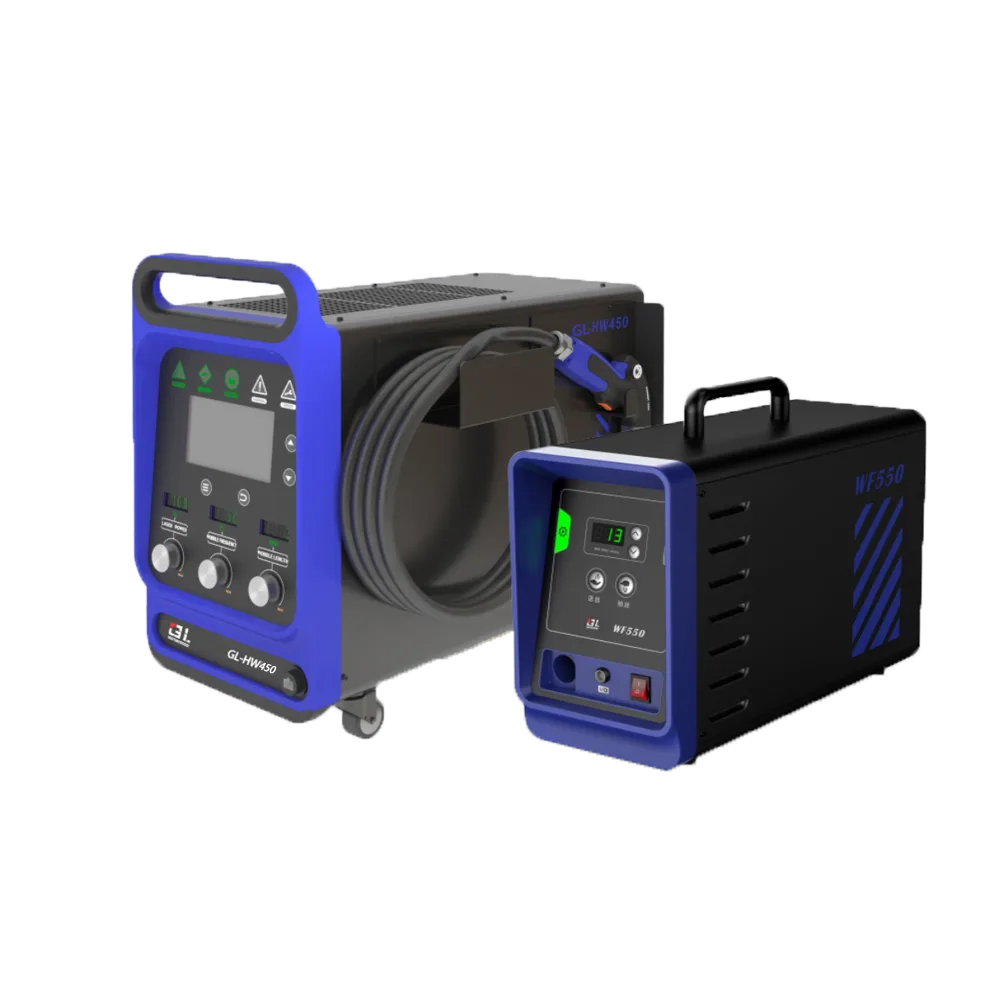

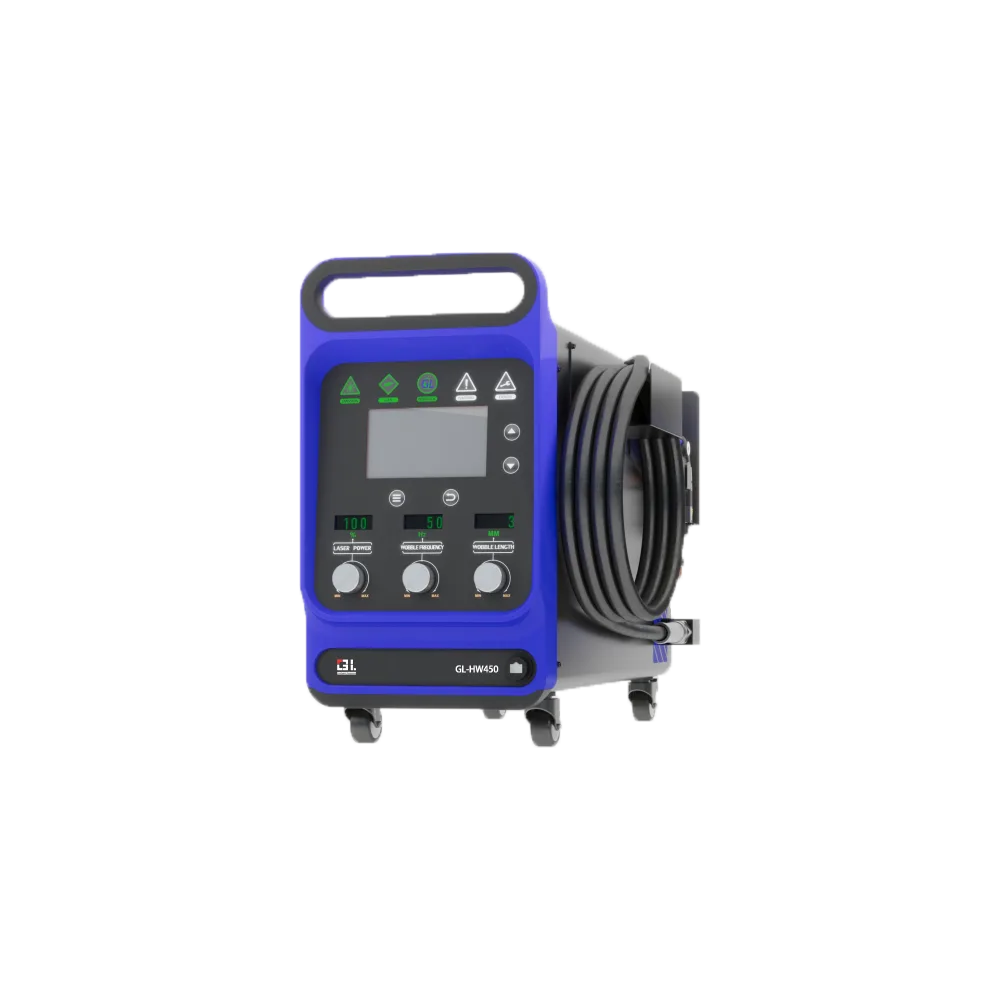

High Performance Handheld Laser Welders-GL-HW Series

Series  –  GL-HW Series
Power Option – 700W-3000W
Rated input power supply – Single Phase220v/Three Phase330V
The GL-HW Series Handheld laser welder is based on the independently developed “small core diameter” laser technology, adopts a new dual-circuit refrigerant direct cooling system, and integrates the GL uctural design to provide customers with high efficiency, large melting depth, energy saving, and convenience.

Product Advantages

  • Integrated Intelligent Handheld Laser Welders——True to their Names
  • Integrated Design of the Complete Set Ensures Higher Welding Efficiency Longer Service Life, and Lower Maintenance Costs
  • Higher Stability Ensures Round-the-clock Operation
  • Adopting Dual Circuit Refrigerant Direct Cooling Technology to Eliminate the Shortcomings of Traditional Air-cooled and Water-cooled Welder
  • Adaptive Repair Process Package Ensures Life-cycle Reliability

Product Technical Parameters

Item Unit GL – HW200 GL – HW350 GL – HW450 GL – HW550 GL – HW550Pro GL – HW850
Rated input power supply – Single Phase220v Three phase
330V
Input power frequency Hz 50/60
Laser power W 700 900 1200 1500 2000 3000
Rated input power W 3200 3800 4200 5400 7200 10500
Welding Speed cm/min 20 – 200 20 – 250
Cooling mode – Dual-circuit refrigerant direct cooling
Working Temperature ℃

-30 – 60
Storage temperature ℃

-40 – 85
Working humidity % 0 – 90
Product dimensions mm 675x310x580 673x310x605 863x410x724
Product dimensions (excluding casters/pad and handle) mm 675x310x457 673x310x457 863x410x555
Product weight kg 38 39 43 45 45 70
Applicable Wire Diameter mm 0.8/1.0/1.2/1.6 Single
feed
mode/Dou
ble feed
mode
0.8/1/1.2/1
.6/2.0
Number of preset process packages PCS 16 24 30 40 40 50
Number of customizable process packages PCS 20 20 20 20 20 20

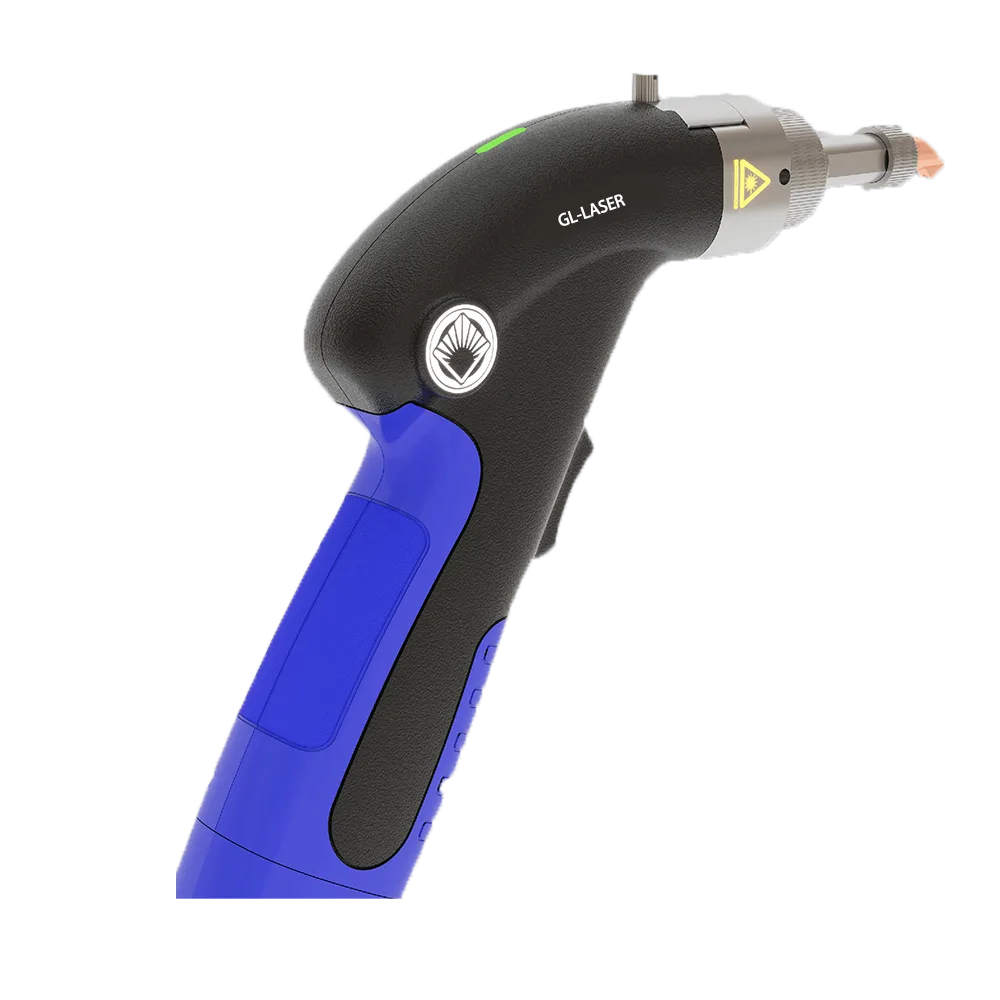

Output mode – Integrated armored cable+welding torch
Armored cable length m 5/10/15/20 (Customizable)
Welding mode – Spot welding/Continuous spot welding/Pulse welding/Continuous welding

Welding parameters

Item Aluminum Stainless steel Galvanized sheet Carbon steel
GL-HW850 8mm 10mm 10mm 10mm
GL-HW550 6mm 6mm 6mm 6mm
GL-HW450 4mm 4mm 4mm 4mm
GL-HW350 3mm 3mm 3mm 3mm
GL-HW200 2mm 2.5mm 2.5mm 2.5mm

Application Areas

  • Hardware processing
  • Sheet metal processing
  • Home appliance
  • Equipment maintenance
  • Automotive body processing
  • Aviation space and transportation industry
  • Construction and pipeline processing
  • Advertising and other applications
微信截图 20250422100234
Model

WH200
Power Option

700W
Rated input power supply

Single Phase220v
Term

FOB
