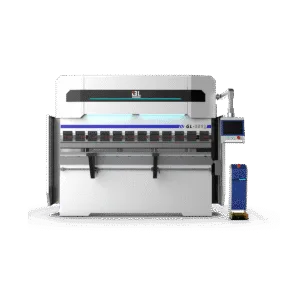

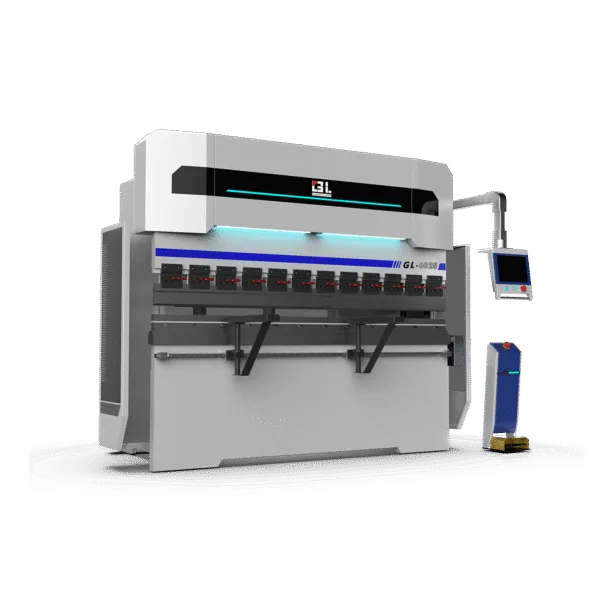

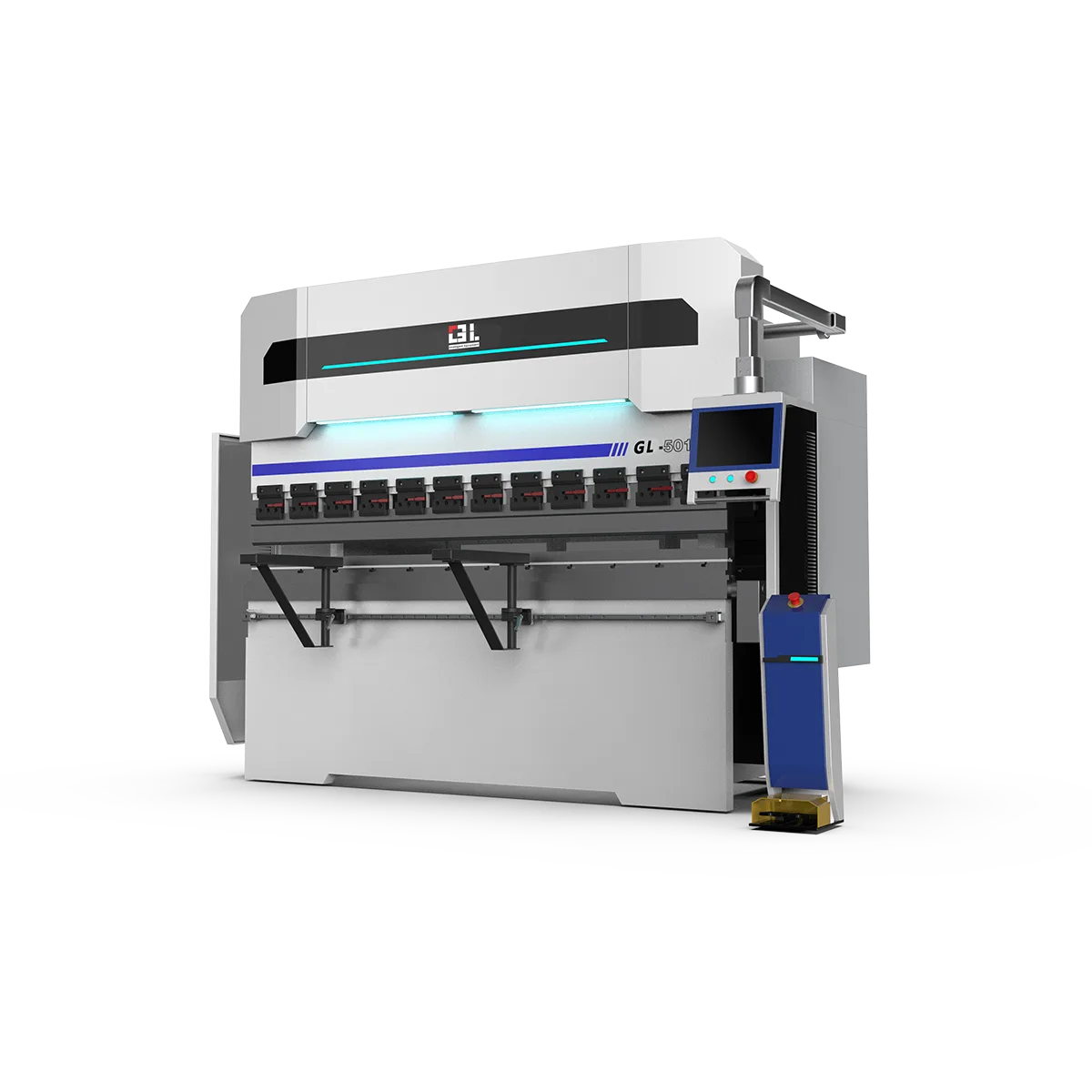

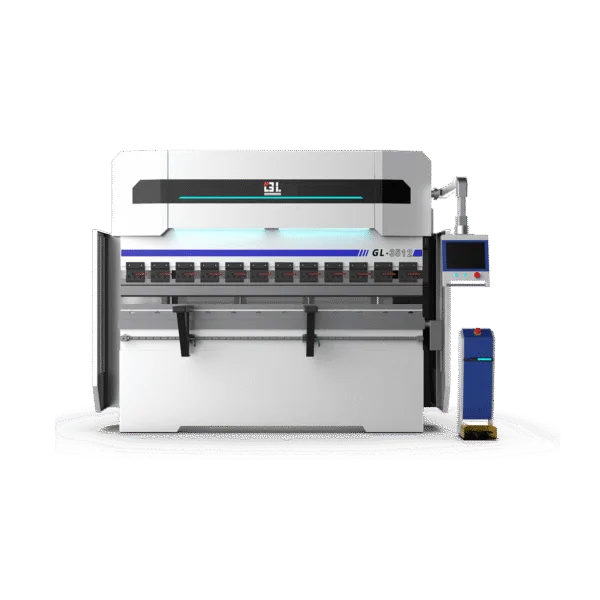

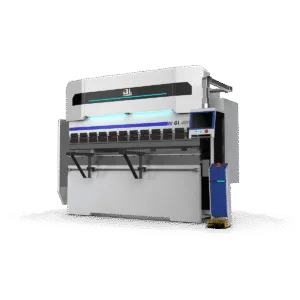

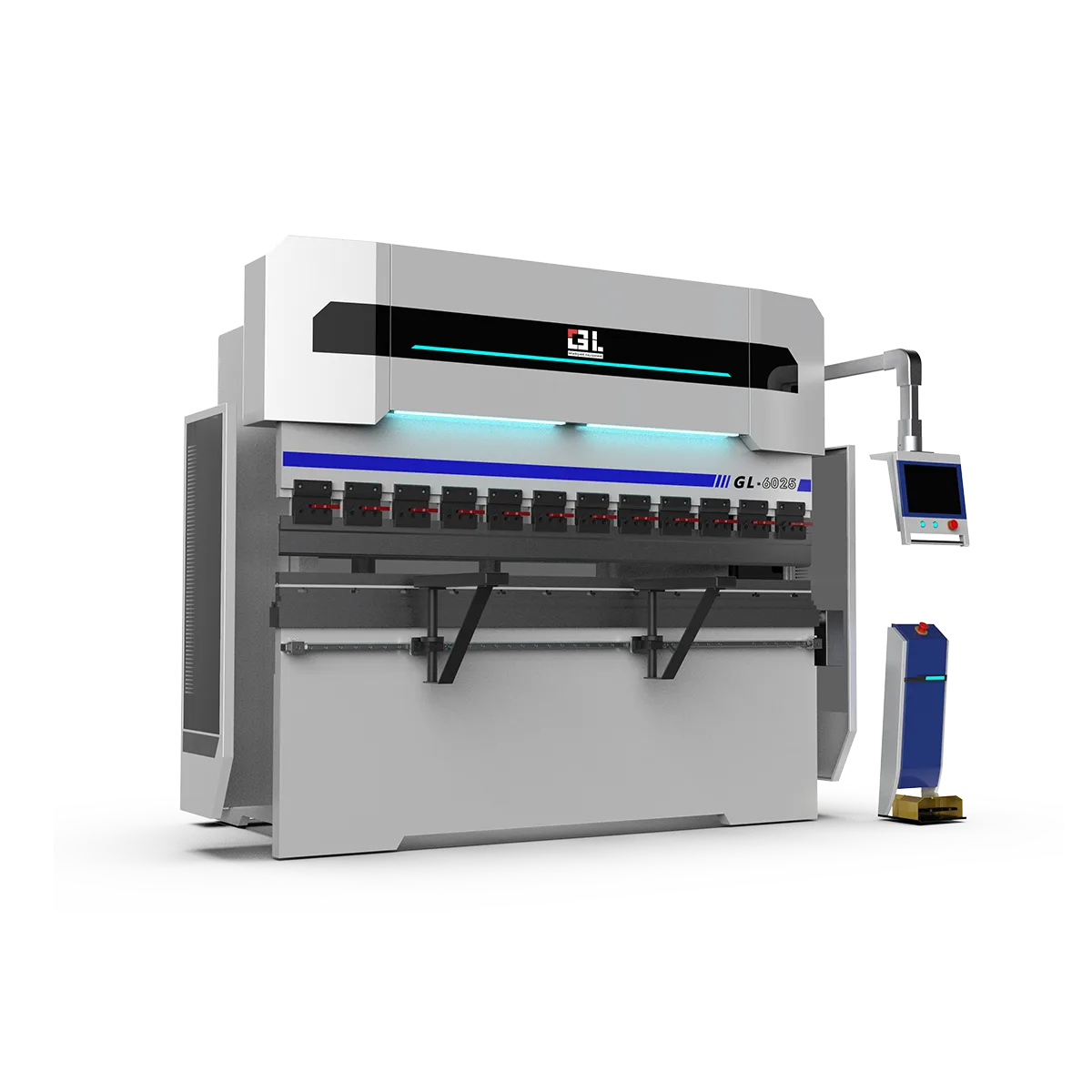

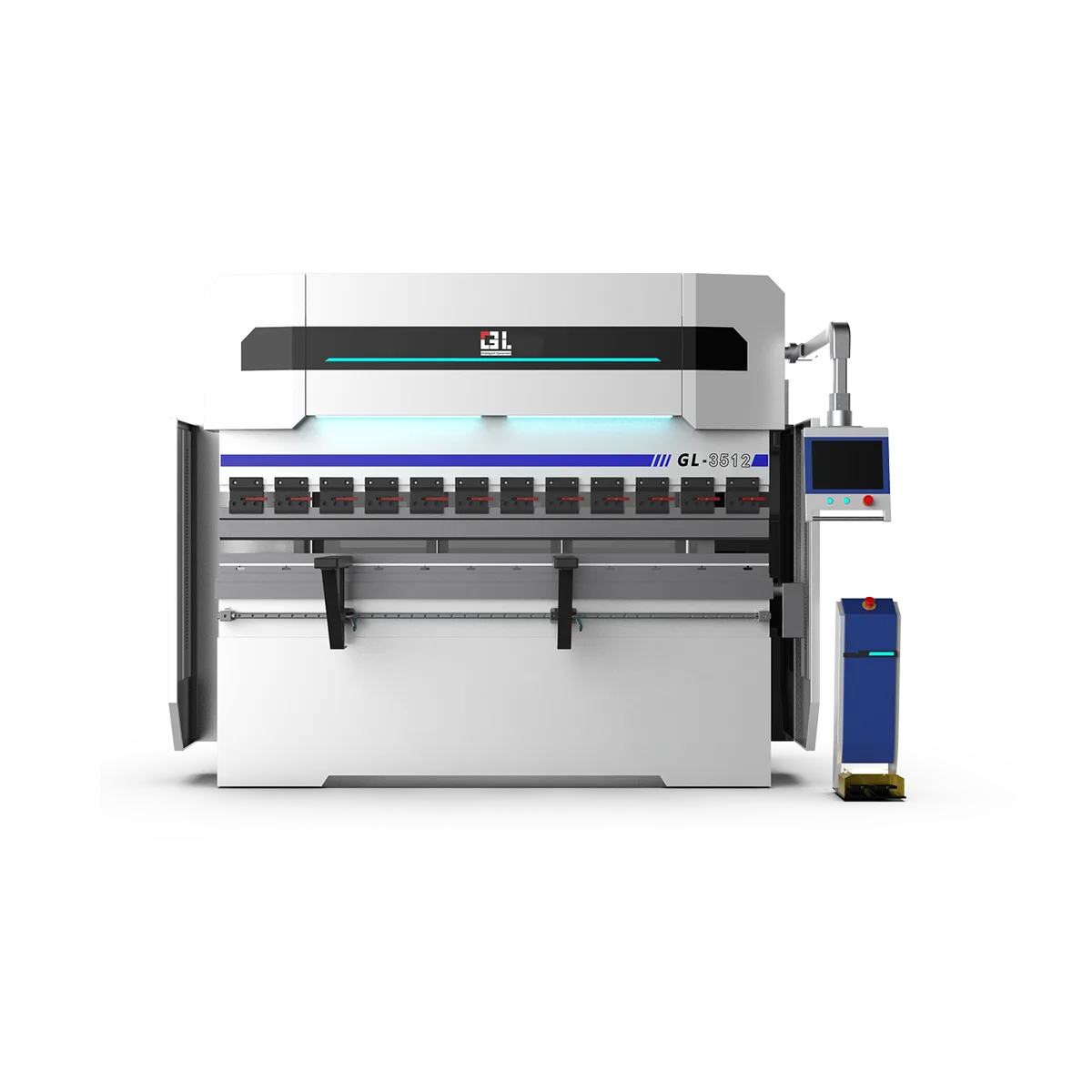

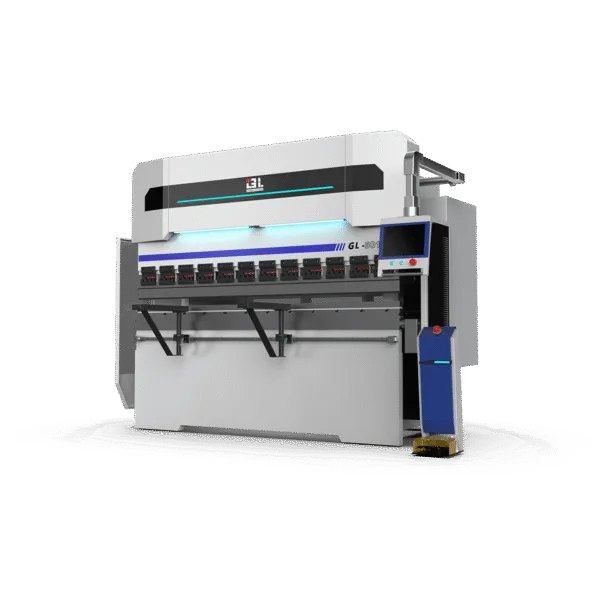

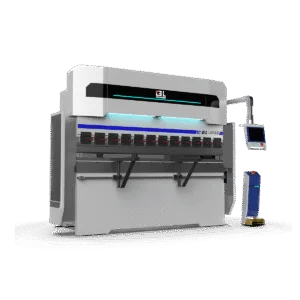

Full Electrical Servo Press Brake

This all-electric servo bending machine is fast, high-precision, energy-saving and environmentally friendly (60% energy saving), low failure rate and no maintenance cost.

Advantages and Characteristics

  • Fast speed: Direct drive by servo motor, fast response, high speed and highefficiency.
  • High precision: The transmission structure of the seryo motor directly drivesthe screw rod, the transmission accuracy is high,and the positioning accuracis±0.01mm.
  • Energy saving and environmenta protection: Self-developed patent pressuremechanism, the main transmission efficiency of more than 95% compared with thesame type of all-electric servo bending machine energy saving about 60%.
  • Low failure rate: The transmission system of the fully electric servo bending machine is simple, and there is no maintenance cost in the future.

Technical parameters

Model GL-3512 GL-5016 GL-6025 GL-8025 GL-10032
Bending Force (KN) 350 500 600 800 1000
Driving Method AC Servo Motor AC Servo Motor AC Servo Motor AC Servo Motor AC Servo Motor
Main Motor Brand Machuan / Inovance (Bus Absolute Value) Machuan / Inovance (Bus Absolute Value) Machuan / Inovance (Bus Absolute Value) Machuan / Inovance (Bus Absolute Value) Machuan / Inovance (Bus Absolute Value)
Number of Control Axes 3/5 3/5 4+1/6+1 4+1/6+1 4+1/6+1
Main Motor Power (KW) 1*5.5 1*7.5 2*7.5 2*11 2*15
Number of Driving Screws 1 1 2 2 2
Bending Length (mm) 1250 1670 2500 2500 3200
Slide Opening Height (mm) 550 550 550 550 550
Throat Depth (mm) 250 250 300 300 300
Workbench Height (mm) 880 880 950 950 950
Overall Dimensions (mm) L1750*W1100*H2100 L1750*W1100*H2100 L2600*W1250*H2200 L3550*W1650*H2800 L3300*W1650*H2800
Weight (Kg) Approximately 2500 Approximately 3000 Approximately 5800 Approximately 6000 Approximately 7800



Machine tool structure and performance characteristics

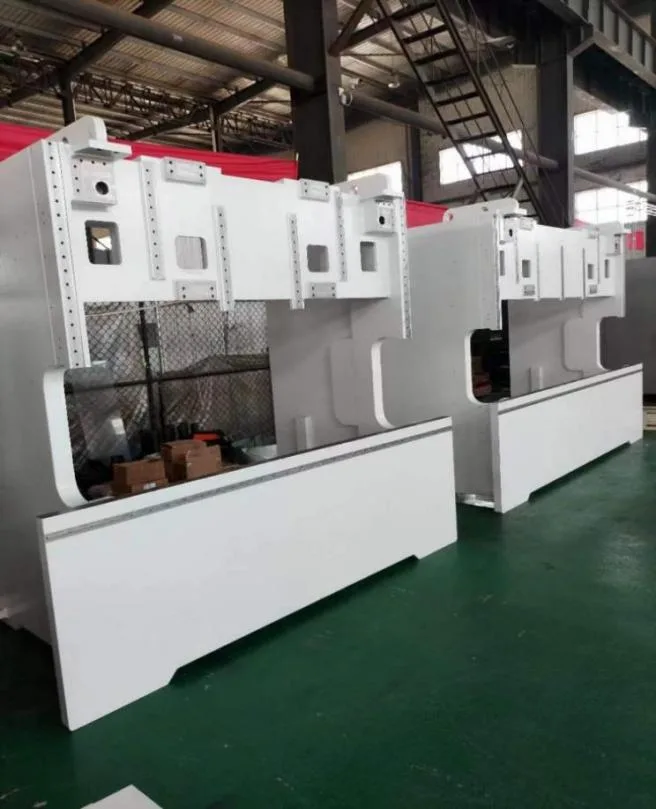

  1. The rack is made of Q235 steel plate welded as a whole, with thick material and strong rigidity, resulting in better overall stress conditions. Thickened welding at the throat to ensure that the stressed area does not deform during operation.
  2. After welding, high-temperature   annealing treatment and surface shot blasting treatment are carried out to completely eliminate the internal stress generated during welding and ensure that there is no deformation after processing. Ensure long-term stability of the rack.

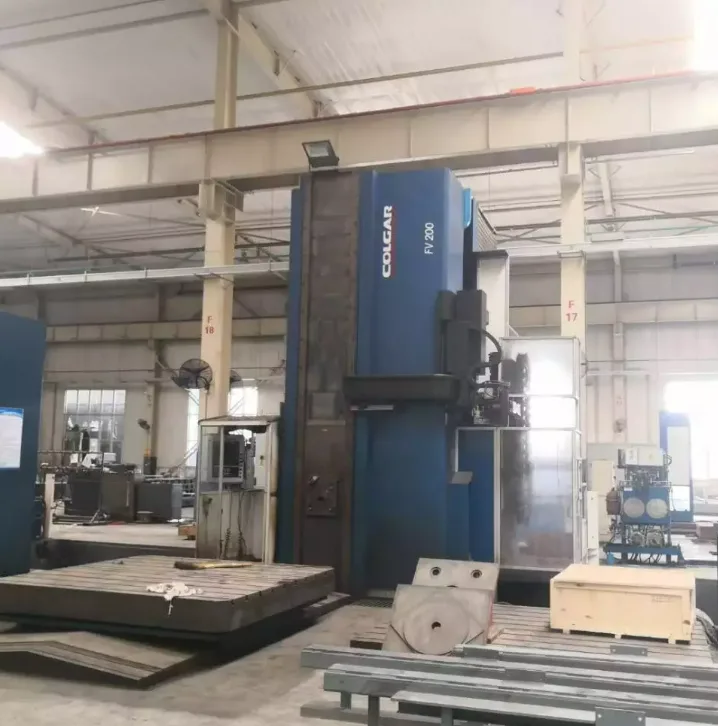

  3. The frame is processed as a whole using a large CNC floor boring and milling machining center, with one clamping to fully ensure the parallelism and perpendicularity of each installation surface.
11
1111

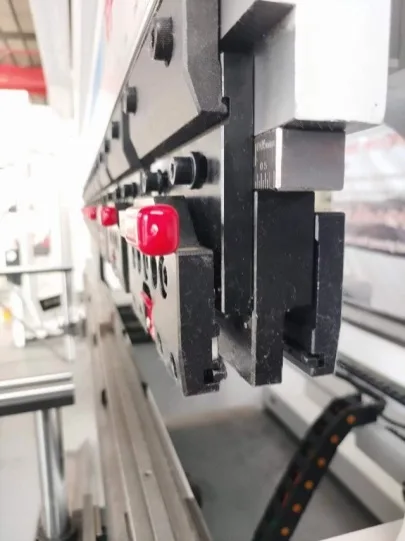

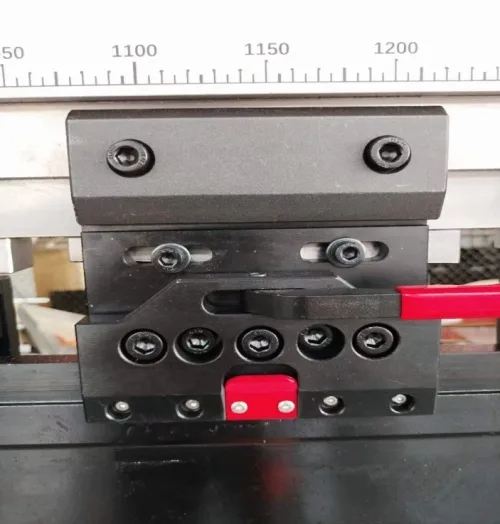

4. The machine tool is equipped with a precision mechanical double-sided quick clamping device, which facilitates efficient mold replacement for customers.

12
13
14

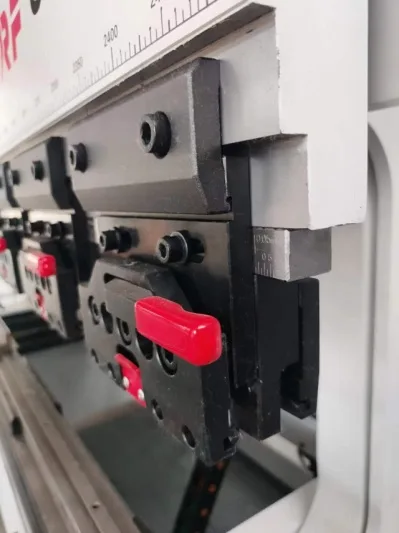

5. The machine tool comes with a set of standard molds, which are divided into two parts: the upper mold and the lower mold. Produced by a well-known domestic mold manufacturer.Precision processing, long-lasting durability.

The upper mold is fixed by a precision mechanical quick clamping device, while the lower mold adopts a double V structure and is fixed on the workbench.

The mold changing operation is fast and convenient, improving production efficiency.Both the upper and lower molds are assembled as a whole with standard parts, making it easy to disassemble and process workpieces of various shapes and sizes for customers.
